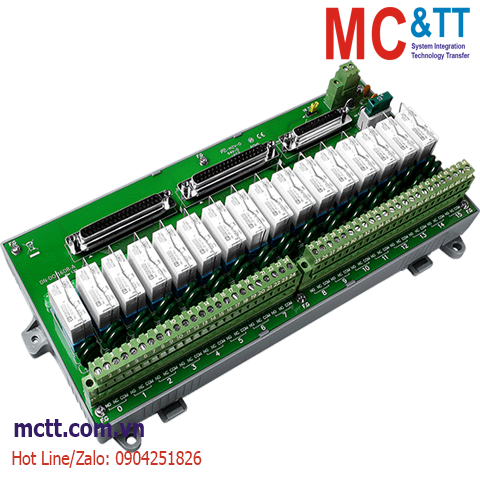

Bo mạch kết nối 16 kênh vào ra số DO ICP DAS DN-DO-16DR-A CR

Features

Introduction

The DN-DO-16DR-A & DN-DO-16DR-B are termination boards with relay (Form C, SPDT) output. The DN-DO-16DR-A is used for digital output channel 0~15, and the DN-DO-16DR-B is used for digital output channel 16~31. These boards offer 2 output for each channel to extend control logic due to the Form C relay, it can be positive (N.O.) or negative (N.C.) logic output or both. In addition, each channel is built-in two varistors on N.O. and N.C. channel to protect against high-voltage transients and surges to the control loop.

PIN Assignments



Wiring

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Digital Output
Type Form C Relay
Relay Output
Contact Rating Contact configuration: SPDT; Rated current/Max. peak current: 6 A/10 A; Rated voltage/Max. switching voltage: 250 VAC/400 VAC; Minimum switching Load: 300 mW
Operate Time 8 ms
Release Time 5 ms
Mechanical Endurance 20 x 10^6
Mechanical
Dimensions (mm) 126.6 x 274.6 x 25.5
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-DO-16DR-A     CR  Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15) (RoHS)
