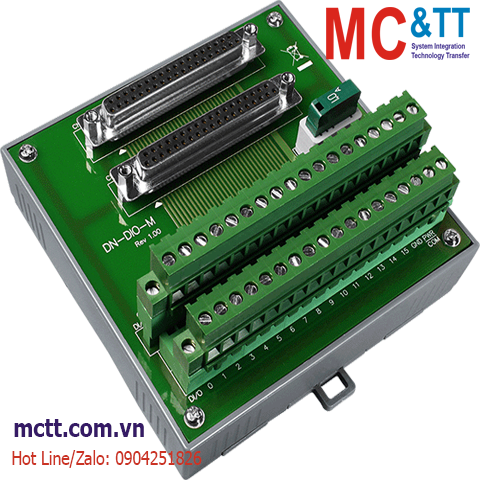

Bo mạch kết nối 32 kênh vào ra số DI/DO ICP DAS DN-DIO-M CR

Chia sẻ:
Mã sản phẩm: DN-DIO-M
Thương hiệu: ICP DAS
Tình trạng:

Universal termination board for digital I/O

Liên hệ
Mô tả

Bo mạch kết nối 32 kênh vào ra số DI/DO ICP DAS DN-DIO-M CR

Features

Introduction



The DN-DIO-M is a termination board for digital input and output modules. The size of DN-DIO-M is relatively small than other termination boards. Due to the small size of termination board, the DN-DIO-M can be fulfilled some applications in small cabinet.

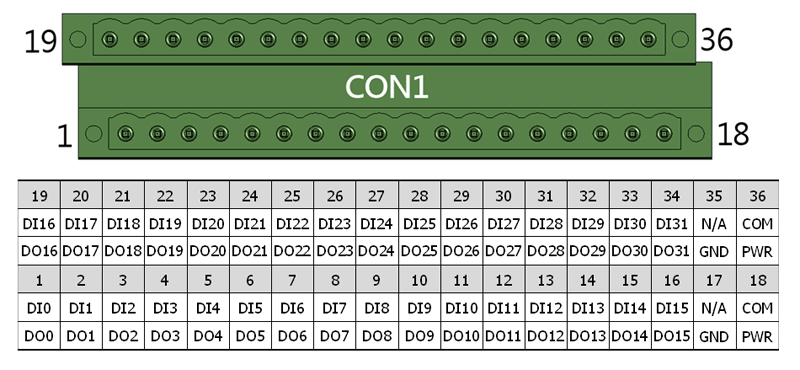

PIN Assignments


 Wiring

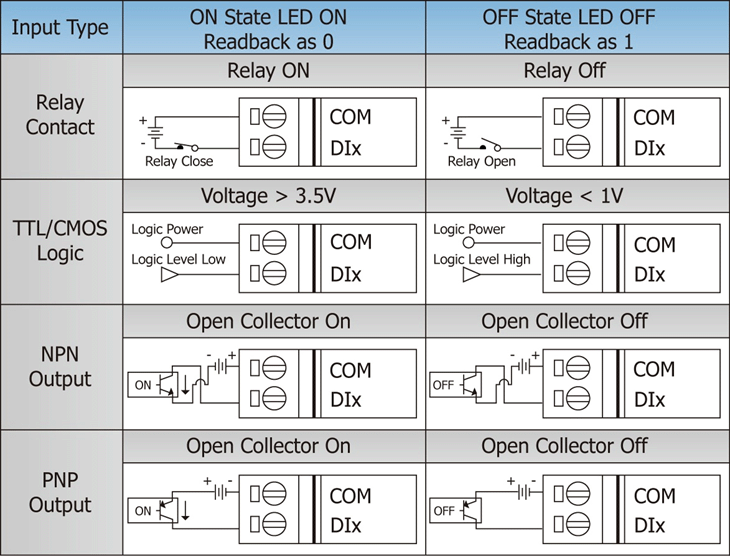

Digital Input

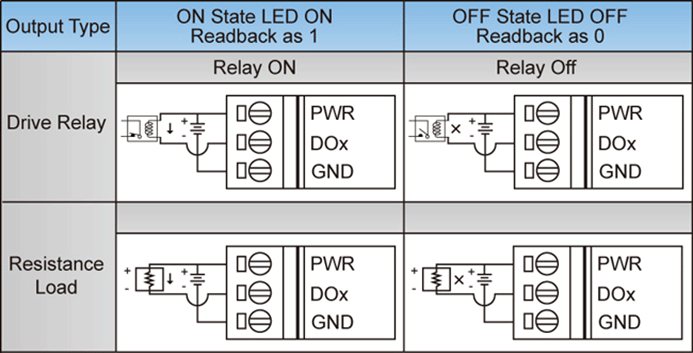

 Digital Output

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Digital Output
Channels 32
Mechanical
Dimensions (mm) 112 x 117 x 29
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-DIO-M     CR  Universal termination board for digital I/O (RoHS)
