Bo mạch kết nối 32 kênh vào ra số DI ICP DAS DN-DI-32DW CR

Features

Introduction

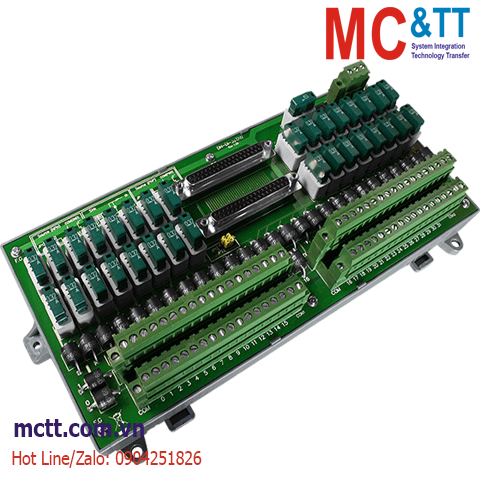

The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

PIN Assignments


Wiring

Dry contact (Current sourcing)


Dry contact (Current sinking)


Jumper Setting

The DN-DI-32DW offers various wire connections to connect with field device to digital input module. It can be switched to different wire connection by changing jumper setting. The detail of jumper settings are described as following table.

NOTE: Please make sure the external power is attached as well when use dry contact wire connection.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Digital Input
Channels 32
Type Dry, Wet
Fuse Protection 320mA for each channel (With physical indication)
Mechanical
Dimensions (mm) 126.6 x 274.6 x 25.5
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-DI-32DW     CR  Termination board for digital input with high EMS protection and removable fuses (RoHS)
