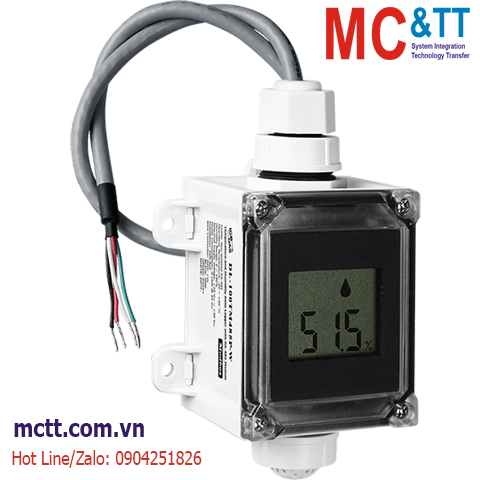

Module đo và hiển thị nhiệt độ + độ ẩm RS-485 Modbus RTU ICP DAS DL-100TM485P-W CR
DL-100TM485P-W CR đã dừng sản xuất, thay thế và nâng cấp thành DL-100TM485S-W CR
Feature
- Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
- Accuracy:
- ±0.4°C; ±3.0% RH for non-P verison
- ±0.3°C; ±1.8% RH for P version
- LCD Display Shows Temperature, Humidity, Dew Point and Module ID
- 10 ~ 30 VDC Power Input
- IP66 Waterproof
- Data Logger Can Store Up to 4088 Temperature and Humidity Records
- RS-485 Communication interface
- Modbus RTU Protocol
Introduction
The DL-100T485/DL-100T485P/DL-100T485-W/DL-100T485P-W/DL-100TM485/DL-100TM485P/DL-100TM485-W/DL-100TM485P-W is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity, dew point and module ID data. The data storage memory can store up to 4088 temperature and humidity records.
The DL Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.
Application
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
Specifications
| Data Logger |
| Mode |
Overwrite or stop logging when storage space is full |
| Time Interval |
10 seconds to 1 day |
| Overwrite Limitation |
1,000,000 cycles |
| Max. Records |
4088 temperature and humidity records |
| Display |
| LCD Information Displayed |
Temperature (°C and °F), Humidity (RH), Module ID |
| Temperature Measurement |
| Range |
-20 ~ +60°C (-4 ~ +140°F) |
| Resolution |
0.1°C |
| Accuracy |
Typical: ±0.3°C |
| Precision |
±0.1°C |
| Humidity Measurement |
| Range |
0 ~ 100% RH |
| Resolution |
0.1% |
| Accuracy |
Typical: ±1.8% RH @ 10 ~ 90% RH |
| Precision |
±0.1% |
| Dew Point |
| Range |
Calculated using temperature and relative humidity |
| Resolution |
0.1°C |
| COM Ports |
| Ports |
1 x RS-485, Non-isolated |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
Modbus RTU |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.15 W |
| Mechanical |
| Dimensions (mm) |
82 x 126 x 55 (W x L x H) |
| Installation |
DIN-Rail; Wall mount |
| Ingress Protection Rating |
IP66 |
| Cable Length |
380 mm |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DL-100TM485P-W CR |
IP66 Remote Temperature and Humidity Data Logger with High Accuracy and LCD Display, Using Modbus RTU Protocol (White Cover) (RoHS) |
