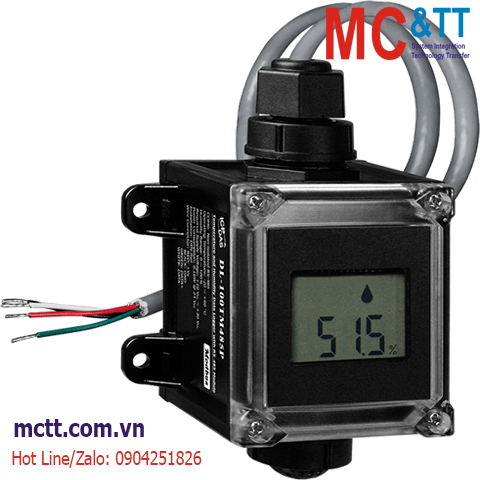

Module đo và hiển thị nhiệt độ + độ ẩm RS-485 Modbus RTU ICP DAS DL-100TM485P CR

Chia sẻ:
Mã sản phẩm: DL-100TM485P
Thương hiệu: ICP DAS
Tình trạng:

IP66 Remote Temperature and Humidity Data Logger with LCD Display (High Accuracy, RS-485)

Liên hệ
Mô tả

Module đo và hiển thị nhiệt độ + độ ẩm RS-485 Modbus RTU ICP DAS DL-100TM485P CR

Feature

  • Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
  • Accuracy:
    • ±0.4°C; ±3.0% RH for non-P verison
    • ±0.3°C; ±1.8% RH for P version
  • LCD Display Shows Temperature, Humidity, Dew Point and Module ID
  • 10 ~ 30 VDC Power Input
  • IP66 Waterproof
  • Data Logger Can Store Up to 4088 Temperature and Humidity Records
  • RS-485 Communication interface
  • Modbus RTU Protocol

Introduction

The DL-100T485/DL-100T485P/DL-100T485-W/DL-100T485P-W/DL-100TM485/DL-100TM485P/DL-100TM485-W/DL-100TM485P-W is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity, dew point and module ID data. The data storage memory can store up to 4088 temperature and humidity records.

The DL Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.

Application

  • Transportation of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Blood stations, pharmacies
  • Building and energy management
  • Warehouses
  • Museums, archives, galleries

Specifications

Data Logger
Mode Overwrite or stop logging when storage space is full
Time Interval 10 seconds to 1 day
Overwrite Limitation 1,000,000 cycles
Max. Records 4088 temperature and humidity records
Display
LCD Information Displayed Temperature (°C and °F), Humidity (RH), Module ID
Temperature Measurement
Range -20 ~ +60°C (-4 ~ +140°F)
Resolution 0.1°C
Accuracy Typical: ±0.3°C
Precision ±0.1°C
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.1%
Accuracy Typical: ±1.8% RH @ 10 ~ 90% RH
Precision ±0.1%
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
COM Ports
Ports 1 x RS-485, Non-isolated
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol Modbus RTU
Power
Input Range +10 ~ +30 VDC
Consumption 0.15 W
Mechanical
Dimensions (mm) 82 x 126 x 55 (W x L x H)
Installation DIN-Rail; Wall mount
Ingress Protection Rating IP66
Cable Length 380 mm
Environment
Operating Temperature -20 ~ +60°C
Storage Temperature -30 ~ +80°C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DL-100TM485P     CR  IP66 Remote Temperature and Humidity Data Logger with High Accuracy and LCD Display, Using Modbus RTU Protocol (Black Cover) (RoHS)
