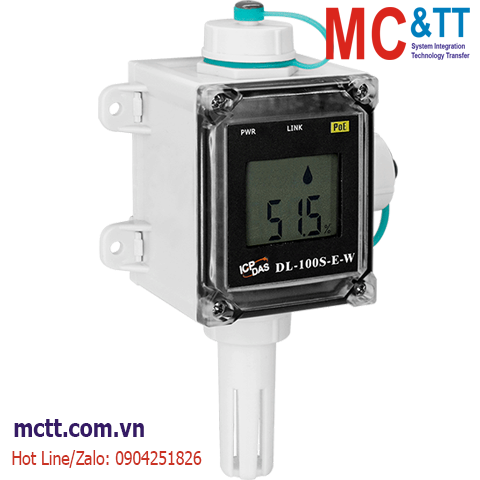

Module đo và hiển thị nhiệt độ + độ ẩm Ethernet Modbus TCP & MQTT ICP DAS DL-100S-E-W CR

Chia sẻ:
Mã sản phẩm: DL-100S-E-W
Thương hiệu: ICP DAS
Tình trạng:

IP66 Remote Temperature and Humidity Data Logger with LCD Display, Using Modbus TCP and MQTT Protocols

Liên hệ
Mô tả

Module đo và hiển thị nhiệt độ + độ ẩm Ethernet Modbus TCP & MQTT ICP DAS DL-100S-E-W CR

Feature

  • Measurement Range: -20 to +60°C and 0 to 100% RH
  • LCD Display Shows Temperature, Relative Humidity, Date and Time
  • Able to store up to 600,000 records with date and time stamps
  • Free Software Utility, iOS APP and Android App Included
  • Supports the Modbus TCP and MQTT Protocols
  • Supports Web Confi guration and Firmware Update via Ethernet
  • IP66 Protection Approval

Introduction

The DL-100S-E / DL-101S-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records to be stored. Real-time data can be accessed from the DL-100S-E / DL-101S-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100S-E / DL-101S-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M) / IoT (Internet of Things) connectivity protocol – MQTT.

The DL-100S-E / DL-101S-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system.

The IP66 version of DL-100S-E / DL-101S-E series is designed for industrial applications in harsh environments that provides IP66 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.


  • Multi-platform Remote Access Software

Real-time data from the DL-100 Data Logger can be accessed from anywhere and at any time using the iAir Utility, the iOS or Android App, or via a regular web browser, as long as it is connected to the same local network as the Data Logger.

  • Supports the MQTT Protocol for IoT

Simple and powerful utility

The iAir Utility can be used to configure the modules, monitor real-time data, or group DL-100 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Application

  • Transportation of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Blood stations, pharmacies
  • Building and energy management
  • Warehouses
  • Museums, archives, galleries

Specifications

CPU Module
Real Time Clock Yes
Watchdog Timer Yes, Module, Communication (Programmable)
System
Display
LCD Information Displayed Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time
LED Indicators
Status PWR: System indicator (Green)
Link: Link/Act indicator (Green)
PoE: PoE indicator (Red)
Temperature Measurement
Range -20 ~ +60°C (-31 to +176˚F)
Resolution 0.1°C
Accuracy ±0.4°C
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.1% RH
Accuracy ±3% RH @ 20 to 80% RH
System
Security IP filter (whitelist) and Password (web)
Data Logger Yes, 600,000 Records
COM Ports
Ports Modbus TCP, MQTT
Ethernet
Ports 10/100 Base-TX with Auto MDI/MDI-X
PoE Yes, (IEEE 802.3af, Class 1)
Protocol Modbus TCP, MQTT
Power
Consumption PoE: 0.7 W Max.
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Mechanical
Dimensions (mm) 92 x 157 x 56 (W x L x H)
Installation DIN-Rail; Wall mounted
Ingress Protection Rating IP66
Environment
Operating Temperature -20 ~ +60°C
Storage Temperature -30 ~ +80°C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DL-100S-E-W     CR  IP66 Remote Temperature and Humidity Data Logger with LCD Display, Using Modbus TCP and MQTT Protocols
(White Cover) (RoHS)
