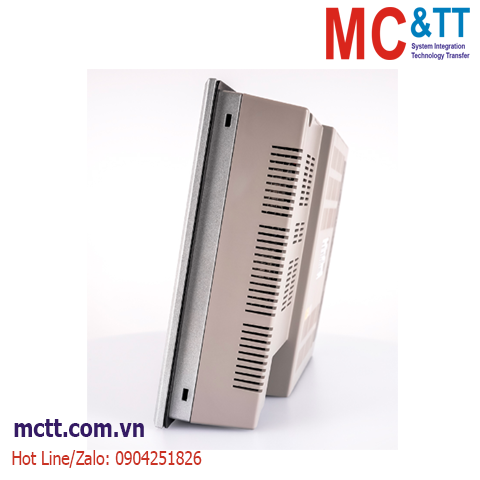

Máy tính công nghiệp màn hình cảm ứng 12.1 inch Cimon CM-NP3612-A/ Intel i3-6100U/ 8 GB/ SSD 250GB/ 2 LAN/ 3 COM/ 4 USB

Chia sẻ:
Mã sản phẩm: CM-NP3612-A
Thương hiệu: Cimon
Tình trạng:

Intel Core i3-6100U, 12.1"(1024x768)TFT, 250GB SSD, 8GB RAM, AC100-240V, OS included

Liên hệ
Mô tả

Máy tính công nghiệp màn hình cảm ứng 12.1 inch Cimon CM-NP3612-A/ Intel i3-6100U/ 8 GB/ SSD 250GB/ 2 LAN/ 3 COM/ 4 USB

Thông số kỹ thuật

Model CM-NP3612-A (AC)
CM-NP3612-D (DC)
CPU Intel® i3-6100U (Fanless)
MEMORY 8 GB (max. 16 GB) DDR4 SO-DIMM
GRAPHIC Integrated Intel HD Graphic
DISPLAY 12.1″ TFT LCD
RESOLUTION 1024 × 768 (XGA)
LCD BRIGHTNESS 700 cd/m2
BACKLIGHT UNIT LED
TOUCH Analog resistive
STORAGE 1 × SSD 250 GB
EX. STORAGE

1 × mSATA

SERIAL

1 × RS-232/422/485, 2 × RS-232

ETHERNET

2 × Gigabit Ethernet

USB

4 × USB 3.0

AUDIO

1 × Line-out, 1 × Mic-in

EX. VIDEO

1 × HDMI/DP

HOT SWAP/RAID 1

N/A

OS (SELECTABLE)

Windows 10 IoT Enterprise (default)/Windows 10 Pro/Windows 10 Enterprise/Windows Embedded Standard 7

UTILITY PROGRAM

Winclone 6 and UWF (Windows 10)/EWF (Windows 7)

POWER CONSUMPTION

17 W

INPUT VOLTAGE

AC models (CM-iNPxxx-A): AC 100–240 V, 50/60 Hz; DC models (CM-iNPxxx-D): DC 24 V

ENCLOSURE

Front case: aluminum, Rear case: plastic

WEIGHT

4.5 kg (9.92 lb)

Dimensions (mm)

Thông tin đặt hàng

  • CM-NP3612-A

Intel Core i3-6100U, 12.1"(1024x768)TFT, 250GB SSD, 8GB RAM, 3 × serial, 2 × Ethernet, 4 × USB, AC 100-240V, OS included

Panel IPC Options & Add-ons

NO   Description
1 Extra 8GB RAM Additional 8GB DDR4 RAM installed for Core series CPU
2 500GB SSD Replace 250GB SSD with 500GB SSD installed for Core series CPU
3 1TB SSD Replace 250GB SSD with 1TB SSD installed for Core series CPU
4 Extra 500GB SSD Additional 500GB SSD installed for Core series CPU
5 Extra 1TB SSD Additional 1TB SSD installed for Core series CPU
6 RAID 1 250GB SSD 2 x 250BG installed for CM-NP5619, CM-NU4Rx6
7 RAID 1 500GB SSD 2 x 500GB SSD installed for CM-NP5619, CM-NU4Rx6
8 RAID 1 1TB SSD 2 x 1TB SSD installed for CM-NP5619, CM-NU4Rx6
9 Windows 10 Pro installation Install Windows 10 Pro instead of Windows 10 IoT Enterprise
10 Windows 10 Enterprise Install Windows 10 Enterprise instead of Windows 10 IoT Enterprise
11 Windows 7 Pro Install Windows 7 Pro instead of Windows 10 IoT Enterprise
12 Windows 7 Embedded Install Windows 7 Embedded instead of Windows 10 IoT Enterprise
SCADA Bundle (With Industrial PC)
Development + Runtime bundle
NO Model Type Description
1 UA01-0075/DS-B 75 Tags Development + Runtime viewer+web/thin client
2 UA01-0150/DS-B 150 Tags Development+Runtime viewer+web/thin client
3 UA01-0500/DS-B 500 Tags Development+Runtime viewer+web/thin client
4 UA01-1500/DS-B 1500 Tags Development+Runtime viewer+web/thin client
5 UA01-3000/DS-B 3000 Tags Development+Runtime viewer+web/thin client
6 UA01-FULL/DS-B Unlimited Tags Development+Runtime viewer+web/thin client
Runtime bundle
NO Model Type Description
1 CM01-0075/RS-B 75 Tags Runtime viewer
2 CM01-0150/RS-B 150 Tags Runtime viewer
3 CM01-0500/RS-B 500 Tags Runtime viewer
4 CM01-1500/RS-B 1500 Tags Runtime viewer
5 CM01-3000/RS-B 3000 Tags Runtime viewer
6 CM01-FULL/RS-B Unlimited Tags Runtime viewer

*Max. RAM is 8GB for J1900 Series, and 32GB for Core Series CPU
*SSD size of both primary and secondary storage should be same for RAID function
*J1900 IPC supports only one 2.5" SSD
