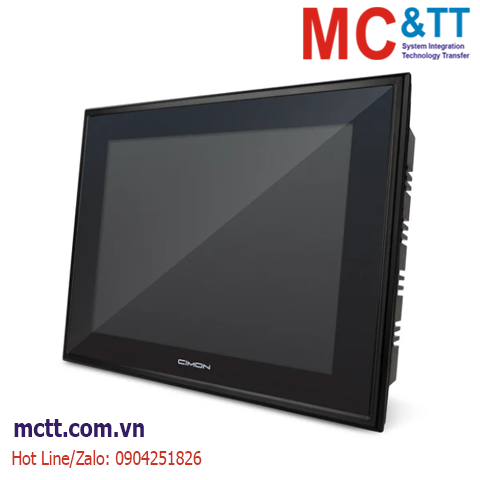

Máy tính công nghiệp màn hình cảm ứng 10,4 inch Cimon CM-iNP510-D (Intel Celeron J6412/ 8 GB/ SSD 250GB/ 2 LAN/ 2 COM/ 4 USB)
Industrial Panel PC
| Model |
CM-iNP510-D |
CM-iNP512-D |
CM-iNP515-D |
CM-iNP519-D |
| CPU |
Intel® Celeron® Quad-Core J6412 SoC (FANLESS) |
|
MEMORY |
DDR4 SDRAM 8GB (Max. 32GB) |
|
GRAPHIC |
Integrated Intel HD Graphic |
|
DISPLAY |
10.4″ TFT LCD |
12.1" TFT LCD |
15" TFT LCD |
19" TFT LCD |
|
RESOLUTION |
SVGA (800×600) |
XGA (1024×768) |
SXGA (1280×1024) |
|
LCD BRIGHTNESS |
700 cd/m2 |
600cd/m2 |
500cd/m2 |
400cd/m2 |
| Backlight Life |
50,000 hours |
50,000 hours |
70,000 hours |
50,000 hours |
|
BACKLIGHT UNIT |
LED |
|
TOUCH |
Analog resistive |
|
STORAGE |
SATA × 1 (SSD 250G Byte) |
|
EX. STORAGE |
M.2(2280) NVMe type × 1 |
|
SERIAL |
COM1 : RS232/422/ 485 -1 Port (default : RS232)
COM2 : RS232 -1 Port |
COM1 : RS232/422/485 -1 Port (default : RS232)
COM2~COM3 : RS232 -2 Ports,
COM4 : RS422/485 -1 Port |
|
ETHERNET |
2 × Gigabit Ethernet |
|
USB |
USB 2.0 : 1 Port, USB 3.0 : 3 Ports |
|
AUDIO |
1 × Line-out, 1 × Mic-in |
|
EX. VIDEO |
HDMI, DP : 1 Port each |
|
OS (SELECTABLE) |
Windows 10 loT Enterprise (default) Windows 10 Pro / Windows 10 Enterprise / Windows 11 Pro |
|
UTILITY PROGRAM |
UWF, Winclon 6.0 (Recovery System) |
|
POWER CONSUMPTION |
42 W (MAX : 53 W) |
51 W (MAX : 65 W) |
48 W (MAX : 60W) |
44 W (MAX : 57W) |
|
INPUT VOLTAGE |
DC24V |
Thông tin đặt hàng
Intel J6412 CPU, 10.4"(800x600) TFT, 250GB SSD, 8GB RAM, DC24V, Win 10 IoT Ent included
Panel IPC Options & Add-ons
| NO |
|
Description |
| 1 |
16GB RAM (16) |
16GB RAM |
| 2 |
32GB RAM (32) |
32GB RAM |
| 3 |
500GB SSD(S5) |
500GB SATA3 SSD |
| 4 |
1TB SSD(S1T) |
1TB SATA3 SSD |
| 9 |
Windows 11 IoT Enterprise(W11) |
Windows 11 IoT Enterprise instead of Windows 10 IoT Enterprise |
| 10 |
Windows 11 Pro(W11P) |
Windows 11 Pro instead of Windows 10 IoT Enterprise |
| 11 |
Linux Ubuntu(LU) |
Linux Ubuntu instead of Windows 10 IoT Enterprise |
Model number format for upgrades: (OS)-(Language)-(RAM)-(SSD).
Example: Win11 Pro (English), 16GB RAM, 500GB SSD: W10P-E-16-S5
*Default model doesn't require this format.
**Other OS Options Avaiable Upon Request
Tài liệu
Datasheet
