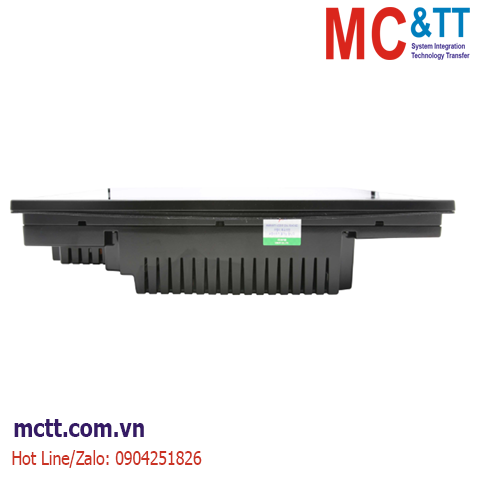

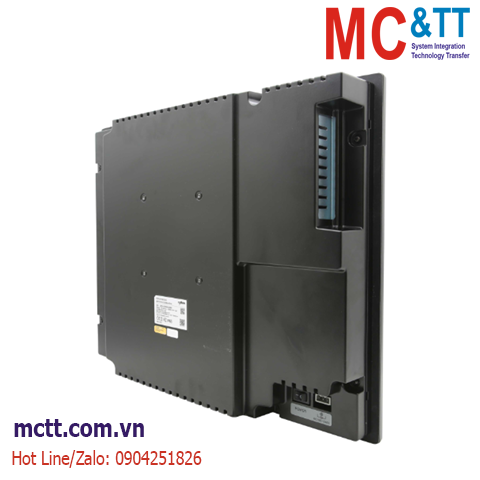

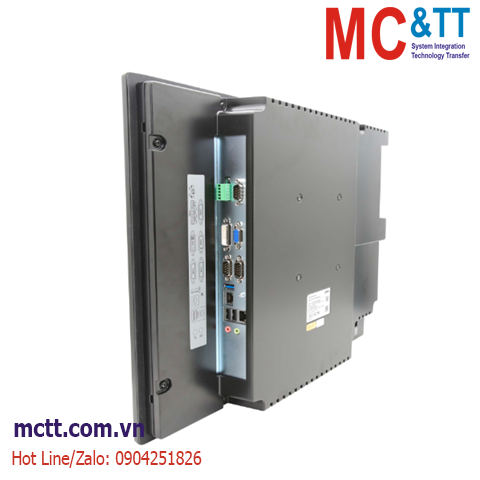

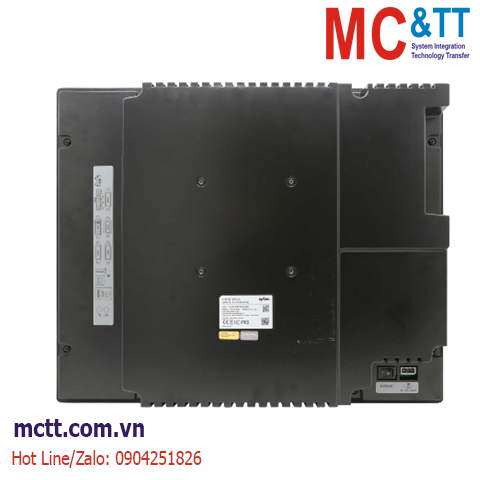

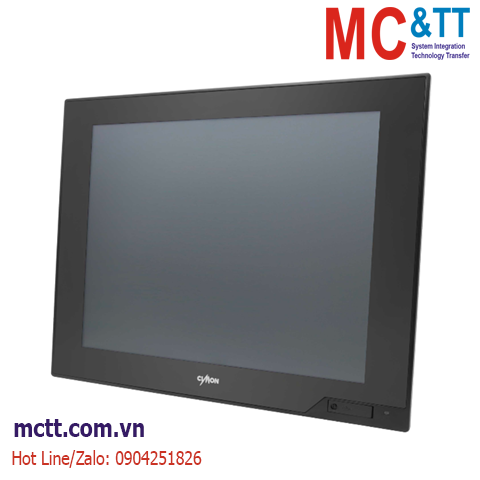

Máy tính công nghiệp màn hình cảm ứng 19 inch Cimon CM-iNP419-D/ Intel Celeron J1900/ 8 GB/ SSD 250GB/ 2 LAN/ 4 COM/ 4 USB
Thông số kỹ thuật
| Model |
CM-iNP419-A (AC)
CM-iNP419-D (DC) |
| CPU |
Intel® Celeron® J1900 2.0 GHz (Fanless |
|
MEMORY |
8 GB (max. 8 GB) DDR3L RAM |
|
GRAPHIC |
Integrated Intel HD Graphic |
|
DISPLAY |
15″ TFT LCD |
|
RESOLUTION |
1280 × 1024 (SXGA) |
|
LCD BRIGHTNESS |
400 cd/m2 |
|
BACKLIGHT UNIT |
LED |
|
TOUCH |
Analog resistive |
|
STORAGE |
1 × SSD 250 GB |
|
EX. STORAGE |
1 × mSATA |
|
SERIAL |
1 × RS-232/422/485,
2 × RS-232, 1 × RS-422/485 |
|
ETHERNET |
2 × Gigabit Ethernet |
|
USB |
1 × Front USB 2.0, 2 × Rear USB 2.0, 1 × USB 3.0 |
|
AUDIO |
1 × Line-out, 1 × Mic-in |
|
EX. VIDEO |
VGA/DVI-D |
|
HOT SWAP/RAID 1 |
Supported |
|
OS (SELECTABLE) |
Windows 10 IoT Enterprise (default)/Windows 10 Pro/Windows 10 Enterprise/Windows Embedded Standard 7/Linux |
|
UTILITY PROGRAM |
Winclone 6 and UWF (Windows 10)/EWF (Windows 7) |
|
POWER CONSUMPTION |
25 W |
|
INPUT VOLTAGE |
AC models (CM-iNPxxx-A): AC 100–240 V, 50/60 Hz; DC models (CM-iNPxxx-D): DC 24 V |
|
ENCLOSURE |
Front case: aluminum, Rear case: plastic |
|
WEIGHT |
7.5 kg (16.53 lb) |
Dimensions (mm)
Thông tin đặt hàng
Intel J1900, 19″(1280×1024)TFT, 250GB SSD, 8GB RAM, 4 × serial, 2 × Ethernet, 4 × USB, DC24V, OS included
Panel IPC Options & Add-ons
| NO |
|
Description |
| 1 |
Extra 8GB RAM |
Additional 8GB DDR4 RAM installed for Core series CPU |
| 2 |
500GB SSD |
Replace 250GB SSD with 500GB SSD installed for Core series CPU |
| 3 |
1TB SSD |
Replace 250GB SSD with 1TB SSD installed for Core series CPU |
| 4 |
Extra 500GB SSD |
Additional 500GB SSD installed for Core series CPU |
| 5 |
Extra 1TB SSD |
Additional 1TB SSD installed for Core series CPU |
| 6 |
RAID 1 250GB SSD |
2 x 250BG installed for CM-NP5619, CM-NU4Rx6 |
| 7 |
RAID 1 500GB SSD |
2 x 500GB SSD installed for CM-NP5619, CM-NU4Rx6 |
| 8 |
RAID 1 1TB SSD |
2 x 1TB SSD installed for CM-NP5619, CM-NU4Rx6 |
| 9 |
Windows 10 Pro installation |
Install Windows 10 Pro instead of Windows 10 IoT Enterprise |
| 10 |
Windows 10 Enterprise |
Install Windows 10 Enterprise instead of Windows 10 IoT Enterprise |
| 11 |
Windows 7 Pro |
Install Windows 7 Pro instead of Windows 10 IoT Enterprise |
| 12 |
Windows 7 Embedded |
Install Windows 7 Embedded instead of Windows 10 IoT Enterprise |
| SCADA Bundle (With Industrial PC) |
| Development + Runtime bundle |
| NO |
Model |
Type |
Description |
| 1 |
UA01-0075/DS-B |
75 Tags |
Development + Runtime viewer+web/thin client |
| 2 |
UA01-0150/DS-B |
150 Tags |
Development+Runtime viewer+web/thin client |
| 3 |
UA01-0500/DS-B |
500 Tags |
Development+Runtime viewer+web/thin client |
| 4 |
UA01-1500/DS-B |
1500 Tags |
Development+Runtime viewer+web/thin client |
| 5 |
UA01-3000/DS-B |
3000 Tags |
Development+Runtime viewer+web/thin client |
| 6 |
UA01-FULL/DS-B |
Unlimited Tags |
Development+Runtime viewer+web/thin client |
| Runtime bundle |
| NO |
Model |
Type |
Description |
| 1 |
CM01-0075/RS-B |
75 Tags |
Runtime viewer |
| 2 |
CM01-0150/RS-B |
150 Tags |
Runtime viewer |
| 3 |
CM01-0500/RS-B |
500 Tags |
Runtime viewer |
| 4 |
CM01-1500/RS-B |
1500 Tags |
Runtime viewer |
| 5 |
CM01-3000/RS-B |
3000 Tags |
Runtime viewer |
| 6 |
CM01-FULL/RS-B |
Unlimited Tags |
Runtime viewer |
*Max. RAM is 8GB for J1900 Series, and 32GB for Core Series CPU
*SSD size of both primary and secondary storage should be same for RAID function
*J1900 IPC supports only one 2.5" SSD
