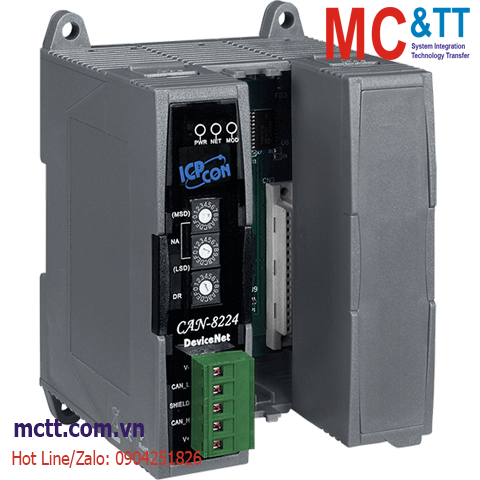

Module DeviceNet 2 khe cắm module I/O ICP DAS CAN-8224-G CR

Chia sẻ:
Mã sản phẩm: CAN-8224-G
Thương hiệu: ICP DAS
Tình trạng:

DeviceNet Remote I/O Unit with 2 I/O Slots

Liên hệ
Mô tả

Module DeviceNet 2 khe cắm module I/O ICP DAS CAN-8224-G CR

Feature

  • DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
  • Number of Nodes : 64(Max)
  • Baud Rate : 125K, 250K, 500K
  • Support Message Groups : Group 2 only Server
  • UCMM : Not Support
  • I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
  • No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
  • MAC ID Setting : Rotary Switch
  • Baud Rate Setting : Rotary Switch

Introduction

The CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8224 supports 2 slots for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.

Application

  • Automotive
  • Food & Beverage
  • Packaging
  • High-speed Assembly
  • Pulp & Paper
  • Semiconductor Fabrication
  • Control System...etc.

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
NVRAM 31 bytes (battery backup, data valid for up to 10 years)
SRAM 512 KB
Real Time Clock Yes
Watchdog Timer Watchdog IC
LED Indicators
Status 1 x Power
2 x DeviceNet status
I/O Expansion
Slots 2 slots
DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
1 connection for COS/Cyclic I/O
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0
Node ID 0 ~ 63
Shutdown Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2 W
Mechanical
Dimensions (mm) 95 x 132 x 91 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-8224-G  DeviceNet Remote I/O Unit with 2 I/O Slots
