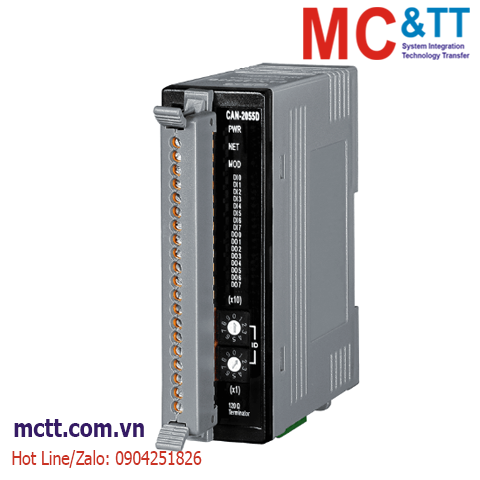

Module DeviceNet Slave 8 kênh DI + 8 kênh DO ICP DAS CAN-2055D CR
Feature
- DeviceNet general I/O slave devices
- Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
- Group 2 Only Server (non UCMM-capable)
- Connection supported:
- 1 connection for Explicit Messaging
- 1 connection for Polled I/O
- 1 connection for Bit-Strobe I/O connection
- Support DeviceNet heartbeat and shutdown messages
- Set the DeviceNet device station number and baud rate through the rotary switch
- Provide EDS file for DeviceNet master interface
- Provide LED indicators for power status, DeviceNet status, terminal resistor status, and digital input/output channel status
Introduction
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2055D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8 isolated sink/source input channels and 8 isolated source output channesl. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.
Application
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
Specifications
| LED Indicators |
| Status |
1 x Power
2 x DeviceNet status |
| Digital Input |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 ~ +30 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Input Impedance |
3 kΩ, 0.3 W |
| Digital Output |
| Channels |
8 |
| Type |
Open emitter |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 ~ +30 VDC |
| Load Current |
700 mA per channel |
| Intra-module Isolation |
3750 Vrms |
| DeviceNet |
| Ports |
1 |
| Connection Supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
| Baud Rate |
125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor |
Switch for 120 Ω terminal resistor |
| Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
| Node ID |
0 ~ 63 |
| Shutdown Message |
Yes |
| Heartbeat Message |
Yes |
| Subscribe |
Group 2 Only Server |
| Mechanical |
| Dimensions (mm) |
33 x 99 x 78 ( W x L x H ) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| CAN-2055D CR |
DeviceNet Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Source, PNP) DO (RoHS) |
