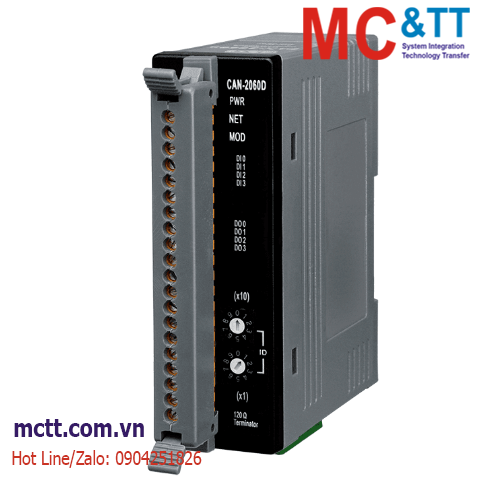

Module DeviceNet Slave 4 kênh đầu vào số + 4 kênh Relay ICP DAS CAN-2060D CR
Feature
- DeviceNet general I/O slave devices
- Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
- Group 2 Only Server (non UCMM-capable)
- Connection supported:
- 1 connection for Explicit Messaging
- 1 connection for Polled I/O
- 1 connection for Bit-Strobe I/O connection
- Support DeviceNet heartbeat and shutdown messages
- Set the DeviceNet device station number and baud rate through the rotary switch.
- Provide EDS file for DeviceNet master interface
- Provide LED indicators for power status, DeviceNet status, terminal resistor status, and digital input/output channel status
Introduction
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2060D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 4 isolated digital input channels supporting both sink and source modes simultaneously, and 4 relay output channels. It can be applied to various applications, you can quickly build a DeviceNet network to approach your requirements.
Application
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
Specifications
| LED Indicators |
| Status |
1 x Power
2 x DeviceNet status |
| Digital Input |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 ~ +30 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Input Impedance |
3 kΩ, 0.3 W |
| DeviceNet |
| Ports |
1 |
| Connection Supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
| Baud Rate |
125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor |
Switch for 120 Ω terminal resistor |
| Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
| Node ID |
0 ~ 63 |
| Shutdown Message |
Yes |
| Heartbeat Message |
Yes |
| Subscribe |
Group 2 Only Server |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.7 W |
| Mechanical |
| Dimensions (mm) |
33 x 99 x 78 ( W x L x H ) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| CAN-2060D CR |
DeviceNet Slave Module of 4-channel Isolated (Wet, Dry) DI, 4-channel Relay Output (RoHS) |
