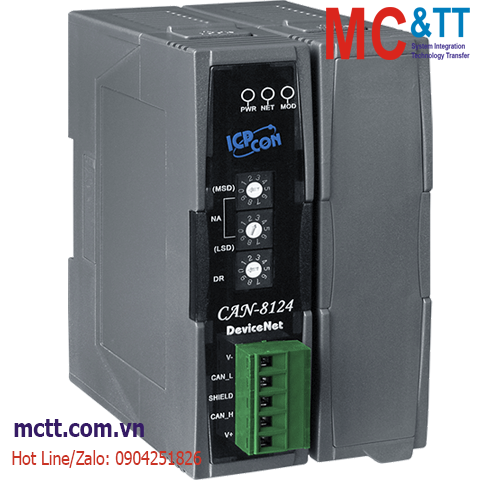

Module DeviceNet 1 khe cắm module I/O ICP DAS CAN-8124-G CR
Feature
- DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
- Number of Nodes : 64(Max)
- Support Message Groups : Group 2 only Server
- UCMM : Not Support
- I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
- No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
- MAC ID Setting : Rotary Switch
- Baud Rate Setting : Rotary Switch
Introduction
The CAN-8124 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8124 supports 1 slot for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.
Application
- Automotive
- Food & Beverage
- Packaging
- High-speed Assembly
- Pulp & Paper
- Semiconductor Fabrication
- Control System...etc.
Specifications
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 bytes (battery backup, data valid for up to 10 years) |
| SRAM |
512 KB |
| Real Time Clock |
Yes |
| Watchdog Timer |
Watchdog IC |
| LED Indicators |
| Status |
1 x Power
2 x DeviceNet status |
| I/O Expansion |
| Slots |
1 slots |
| DeviceNet |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Connection Supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
1 connection for COS/Cyclic I/O |
| Baud Rate |
125 k, 250 k, 500 k |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Specification |
Volume I, Release 2.0 & Volume II, Release 2.0 |
| Node ID |
0 ~ 63 |
| Shutdown Message |
Yes |
| Subscribe |
Group 2 Only Server |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.7 W |
| Mechanical |
| Dimensions (mm) |
64 x 119 x 91 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| CAN-8124-G |
DeviceNet Remote I/O Unit with 1 I/O Slot |
