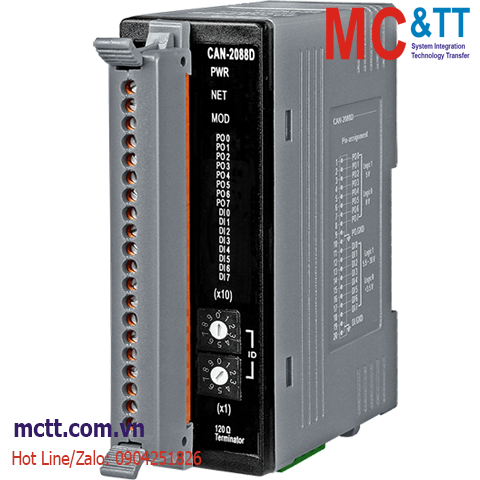

Module DeviceNet Slave 8 kênh HSC + 8 kênh đầu ra PWM ICP DAS CAN-2088D CR

Feature

  • Hardware-controlled PWM output
  • PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
  • PWM Output Modes: software trigger / hardware trigger
  • Trigger each PWM output individually or all PWM outputs synchronously
  • Support Burst output mode and Continue output mode
  • Provide 32-bit 500 kHz high-speed counter for each DIchannel
  • Pass the validation of DeviceNet conformance test
  • Provide EDS file for DeviceNet master interface

Introduction

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088D is a PWM slave module of DeviceNet protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.

Application

  • Controlling the position/speed of motors
  • Dimming the brightness of lamps
  • Controlling the speed of fans
  • High speed counter

We have communicated with the following DeviceNet masters or gateways.

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

Specifications

LED Indicators
Status 1 x Power
2 x DeviceNet status
Digital Input
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink
ON Voltage Level +5.5 ~ +30 V
OFF Voltage Level <3.5 V
Input Impedance 4.7 kΩ, 1/4 W
PWM
Channels 8
Sink/Source (NPN/PNP) Source
Load Current 1 mA
Frequency 0.2 ~ 500 kHz (non-continuous)
Duty Cycle 0.1 ~ 99.9 %
Mode Burst mode, Continuous mode
Burst Count 1~65535 counts
Trigger Start Hardware (Start and Stop) or Software (Start and Stop)
DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps
Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2 W
Mechanical
Dimensions (mm) 32.3 x 99 x 77.5 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2088D     CR  DeviceNet Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input (RoHS)
