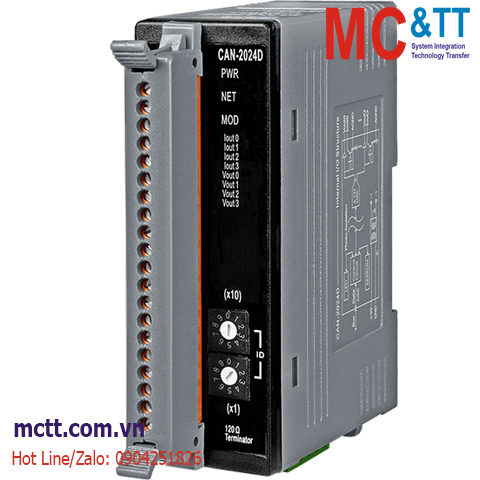

Module DeviceNet Slave 4 kênh AO ICP DAS CAN-2024D CR

Chia sẻ:
Mã sản phẩm: CAN-2024D
Thương hiệu: ICP DAS
Tình trạng:

DeviceNet Slave Module of 4-channel 14-bit AO

Liên hệ
Mô tả

Module DeviceNet Slave 4 kênh AO ICP DAS CAN-2024D CR

Feature

  • DeviceNet general I/O slave devices
  • Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface

Introduction

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2024D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog output status and set the configuration via DeviceNet EDS file. CAN-2024D has 4-channel 14-bit analog output and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

Application

We have communicated with the following DeviceNet masters or gateways.

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

Specifications

LED Indicators
Status 1 x Power
2 x DeviceNet status
Analog Output
Channels 4
Type 0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution 14-bit
Accuracy +/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift Voltage: +/-30μV/°C
Current: +/-0.2μV/°C
Span Drift +/-20ppm/°C
Voltage Output Capability 10V@5mA
Current Load Resistance External +24 V : 1050 Ohms
Power-on Value Yes
DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps
Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W
Mechanical
Dimensions (mm) 32.3 x 99 x 77.5 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2024D     CR  DeviceNet Slave Module of 4-channel 14-bit AO (RoHS)
