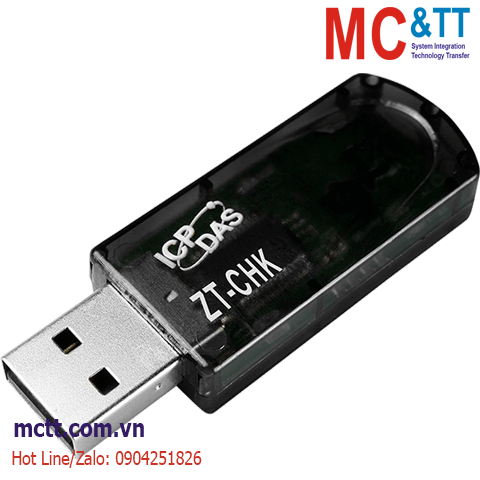

ZigBee Sniffer ICP DAS ZT-CHK CR
Feature
- Can capture over-the-air data packets of IEEE 802.15.4 standard
- No External Antenna required
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- No External Power Supply required
- Operating Temperatures, -25 °C ~ +75 °C
Introduction
The ZT-CHK module is a wireless sniffer to capture and analyze over-the-air data packets of IEEE 802.15.4 standard in real-time with TI SmartRF Protocol Packet Sniffer (SPPS) software. It is easy to install the ZT-CHK to PC by USB interface. With SPPS software, users can view or store the wireless data packets in PC and these data packets are like ZigBee 2007(ZigBee Pro). Moreover, that can be a good way for users to analyze the IEEE 802.15.4 data in their applications, and reduce the wireless communication test time efficiently.
SmartRF Protocol Packet Sniffer can be downloaded as below website (http://www.ti.com/tool/packet-sniffer). When users install the SmartRF Protocol Packet Sniffer, the driver of ZT-CHK will also be installed.
Application
Specifications
| ZigBee |
| Antenna |
2.4GHz-3dBi PCB Antenna (50Ω) |
| USB |
| Connector |
Type-A Plug |
| Driver |
Windows 2000/XP/Vista/7/8 |
| Power |
| Consumption |
0.15 W (Max.) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
19.8 x 58.4 x 9 (W x L x H) |
Note: The ZT-CHK doesn’t have FCC ID, so ZT-CHK can be sold in Asia Only.
Download
Datasheet
Documents
Ordering Information
| ZT-CHK CR |
ZigBee Sniffer (RoHS) (Asia Only) |
