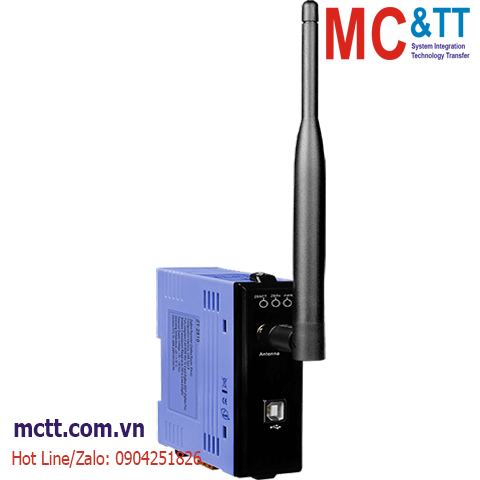

Bộ lặp và chuyển tiếp Zigbee (Router) ICP DAS ZT-2510 CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G (IEEE802.15.4/ ZigBee Specifications)
- Fully Compliant with ZigBee Pro (ZigBee 2007)
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- GUI Configuration Software (Windows Version)
- Supports AES-128 Encryption for the Wireless Communication
- DIN-Rail Mountable
Introduction
The ZT-2510 series module is small-sized wireless ZigBee repeater based on the IEEE802.15.4 standard. It supports network routing and signal relay transmission function in a personal area ZigBee network. The typical transmission of ICP DAS ZT series ZigBee products is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384 PAN IDs. ZT-2000 series is a long distance wireless repeater and you are able to use it to extend the transmission range and improve the quality of wireless signal. ZT-2000 series products are specification for a suite of high level communication protocols using small, low-power digital radios module, which are fitted the ZigBee 2007 (ZigBee Pro) of ZigBee Alliance. In the ZigBee network, it is only allowed one ZigBee Host and called "ZigBee Coordinator", ZT-2550/ZT-2570 series products, are used to initialize and manager the routing. In addition, One ZigBee network are able to manager 255 ZigBee router and responsible for receiving or bypassing data from parent or child node. In ICP DAS products, the ZT-2551, ZT-2571, ZT-2000 I/O and ZT-2510 are the ZigBee routers. A Windows compatible GUI configuration utility is available. The utility allows users to set different configurations based on the type of application, together with several of required ZigBee variables such as Pan ID. The friendly user interface is also helping user be familiar with ZT-2000 series.
Application
Specifications
| LED Indicators |
| Status |
1 x Power
1 x Net
1 x RxD |
| RF |
| Channels |
16 |
| Transmission Power |
11 dBm |
| ZigBee |
| Antenna |
5 dBi Omni-Directional antenna |
| Certifications |
FCC/FCC ID, CE (RED excluded) |
| Max. Slaves |
255 |
| Transmission Distance (LoS) |
700 m (Typical) |
| USB |
| Driver |
Windows 98/ME/2000/XP/Vista/7/Linux 2.6.19 |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 87 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
5 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2510 CR |
ZigBee Repeater (ZigBee Router) (RoHS)
(Asia Only) |
