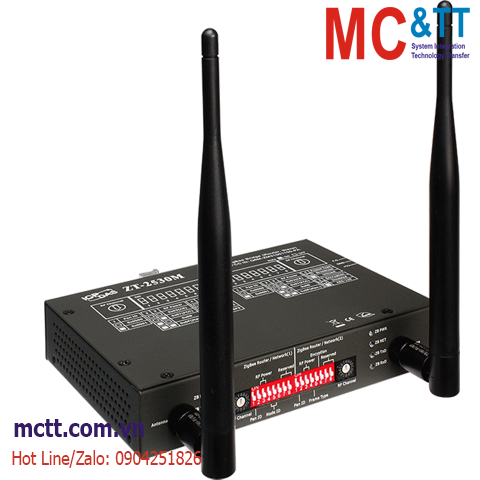

Bộ lặp và chuyển tiếp Zigbee (Coordinator & Router) ICP DAS ZT-2530M CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G (IEEE802.15.4/ ZigBee Specifications)
- Fully Compliant with ZigBee Pro (ZigBee 2007)
- Wireless Transmission Range up to 700 m (Default)
- Fully External Switch for the Hardware Configuration
- Adjustable RF Transmission Output Power
- Supports AES-128 Encryption for the Wireless Communication
- Surge and ESD Protection
- DIN-Rail Mountable
Introduction
ZT-2530M is a ZigBee Bridge used to connect two different ZigBee networks. The absorption of wireless signals by buildings and other obstacles in the urban environments significantly impair wireless transmission. Therefore, ICP DAS provides the new ZT-2530M - the ZigBee bridge, which is equipped with dual antennas and combined a ZigBee coordinator with a ZigBee router. It can be full hardware configuration, and be used to bridge the communication between indoor and outdoor units or divide complex network to enhance efficiency. The ICP DAS ZigBee products are designed primarily to help users to build a wireless communication system in an environment where it is hard to physically wire up the devices. They are widely used in industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, home automation and so on.
Application
Specifications
| LED Indicators |
| Status |
1 x Power
1 x Net
1 x TxD
1 x RxD |
| RF |
| Channels |
16 |
| Transmission Power |
11 dBm |
| ZigBee |
| Antenna |
2 x 2.4 GHz – 5 dBi Omni-Directional antenna |
| Certifications |
CE/FCC, FCC ID |
| Max. Slaves |
255 |
| Standard |
ZigBee 2007 Pro |
| Transmission Distance (LoS) |
700 m (Typical) |
| Type |
ZigBee Router + ZigBee Coordinator |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
Max. 1 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
30 x 125 x 160 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2530M CR |
ZigBee Bridge Module (ZigBee Coordinator and ZigBee Router) (RoHS)
(Asia Only) |
