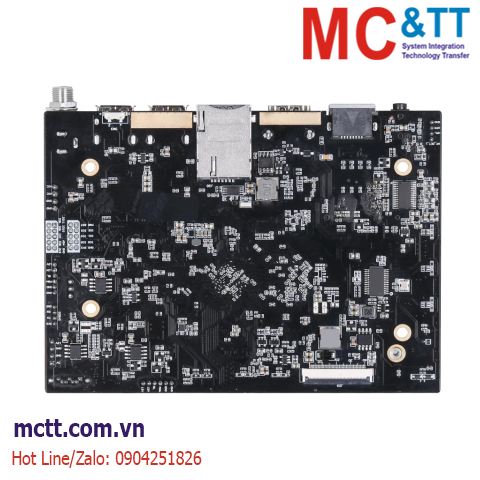

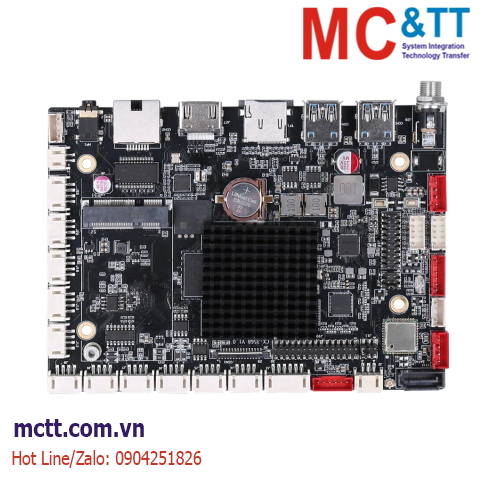

Bo mạch chủ công nghiệp RK3568 Android OS ZM3568
ZM3568 is a 22nm advanced manufacturing process android series product with high performance, low power consumption feature. It has a quad-core 64-bit Cortex-A55 core architecture with a 2.0GHz basic frequency; Built-in independent NPU, with 1 TOPS AI computing power, support light weight AI application development, GPU using ARM Mali-G52 2EE, it supports 4K video decode and 4K display output.
Tính năng
- Various display interfaces: eDP/MIPI/LVDS/HDMI
- Various I/O interfaces: six USB ports (A USB3.0 HOST standard port, a USB3.0 OTG standard port, four internal expansion ports, there expansion ports from USB_HUB, one from CPU), two TTL serial ports, two RS232 serial ports, a 485 port, a 12 I/O channel GPIO port
- Various internet interfaces: a 1000M Ethernet interface, 2.4G WIIF and BT5.2 supported, built-in PCI-E 4G module interfaces.
- Supports 4K/60HZ output, it also supports display screen with LVDS/EDP/MIPI/HDMI interface.
- Android system customization: provides system calling interface and API reference code, it supports upper-layer applications development perfectly
Thông số kỹ thuật
|
ITEM |
Specifications |
|
CPU |
RK3568 64Bit Quad Core Cortex-A55 2.0GHz |
|
GPU |
ARM Mali-G52 2EE GPU |
|
Memory |
4/8 GB LPDDR4 (optional) |
|
Storage |
EMMC 32/64GB (optional) |
|
ROM |
4KB EEPROM |
|
Resolution |
4K/60HZ |
|
OS |
Android 14 |
|
Play Mode |
Supports multiple play modes such as loop, timing and interstitial. |
|
Network |
4G, Ethernet, WiFi/BT5.0, Wireless peripheral extension |
|
Video Format |
Support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 etc |
|
Photograph Format |
Support BMP, JPEG, PNG, GIF |
|
USB |
USB3.0*2(HOST*1, OTG*1)
USB2.0 interface*4 |
|
Mipi Camera |
30pin FPC interface, 1300w Camera supported |
|
Serial Port |
RS232*2, 485*1, TTL*2, CAN port*1 |
|
GPS |
External GPS (Optional) |
|
SATA |
SATA socket*1 |
|
WIFI, BT |
Built-in 2.4G WIFI, BT5.2 |
|
4G |
Built-in MINIPCIE 4G module socket |
|
Ethernet |
1000M*1 |
|
TF |
Trans flash Card supported |
|
LVDS |
Dual-channel LVDS port*1 |
|
eDP |
x4 eDP port*1 |
|
HDMI |
Standard HDMI2.0 port |
|
MIPI |
A MIPI LCD port (40 pins FPC socket) |
|
AV Output |
Built-in dual channel AV output, amplifier support 4R/10W per channel or 8R/5W per channel |
|
Earphone Port |
Built-in 3.5mm 4-pole port |
|
Real Time Clock |
Supported |
|
Timing turn on/off |
Supported (a RJ45 port for remote startup control) |
|
Size |
140mm x 100mm |
Thông tin đặt hàng
|
Part no. |
Description |
|
ZM3568-4G |
Industrial motherboard with Rockchip RK3568, 4GB Flash onboard, 32GB EMMC, Android 14 OS and power adapter |
|
ZM3568-8G |
Industrial motherboard with Rockchip RK3568, 8GB Flash onboard, 64GB EMMC, Android 14 OS and power adapter |
Tài liệu
Datasheet
