| Model |

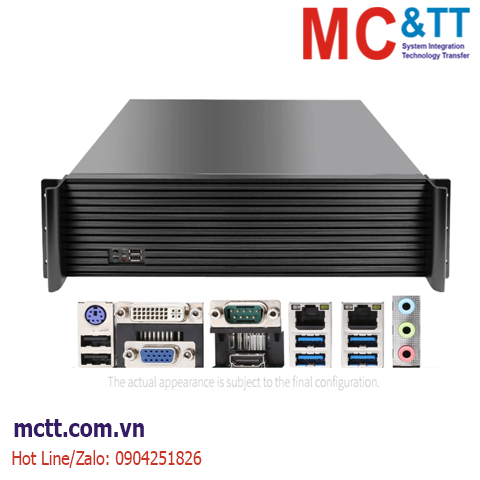

IPC-K345L7 |
| Supported OS |
Windows 10 64-bit, Linux |
| Chipset |
Intel® Comet Lake PCH-H, Q470, TDP 65W |
| CPU |
Socket |
Intel® Desktop Processors Socket LGA1200 |
| |
Series |
Intel® 10th Generation Core / Pentium/ Celeron Desktop CPU |
Intel® 11th Rocket Lake Desktop CPU |
| RAM |
Type&Qty |
Support DDR4-2400/2666/2933MHz, 4 * Non-ECC U-DIMM Slot, Up to 128GB |
| Storage Device |
SATA |
4 * SATA3.0 7P Connector (Supports RST RAID 0,1,5,10) |
| M.2 |
1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe/ SATA SSD Auto Detect, 2242/2280) |
Extended
Capabilities |
Expansion Slots |
1 * PCI-E 16x Slot (PCIe 16X GEN3) [1]
1 * PCI-E 16x Slot (PCIe 8X GEN3)
3 * PCI-E 4x Slot (PCIe 4X GEN3)
2 * PCI Slot
1 * Mini PCI-E Slot (WIFI+4G/3G, with 1 * Full-Size SIM Card Slot)
1 * PCI CLK 66MHz Enable/Disable Select Jumper |
| I/O Interface |
COM |
1 * RS232 (COM1, DB9/M);
3 * RS232 (COM2/5/6, Header);
1 * RS232/RS422/RS485 (COM3, Header);
1 * RS232/RS485 (COM4, Header); |
| Ethernet |
LAN1: 1 * I219 GBE LAN Chip (10/100/1000 Mbps, RJ45);
LAN2: 1 * I211 GBE LAN Chip (10/100/1000 Mbps, RJ45) |
| USB |
4 * USB3.0 (TYPE-A, Rear IO);
2 * USB3.0 (Header, Internal);
2 * USB2.0 (TYPE-A, Rear IO);
1 * USB2.0 (Vertical TYEP-A, Internal);
4 * USB2.0 (Header, Internal); |
| Video |
1 * DVI-D (DVI-I): Support DVI-D, max resolution up to 1920x1200@60Hz
1 * VGA, up to 1920x1200@60Hz;
1 * HDMI 1.4b (TYPE-A), up to 4096x2160@30Hz; |
| Audio |
Realtek HDA Codec, 1 * Front Audio Header (Line-Out + MIC) 1 * SPDIF Out Header 1 * Line-out + Line-in + MIC 3.5mm Jack |
| Power Supply |
ATX Standard (24P + 8P + 4P); 1 * ATX 4P CPU Power Input Connector; 1 * ATX 8P CPU Power Input Connector; 1 * ATX 24P Power Input
Connector; Optional 300W/ 550W/ 750W/ 1250W ATX Power Supply |
| Other |
8 * GPIO; 1 * PS/2 Connector (Keyboard & Mouse); 1 * Front Panel Header (HDD LED+PWR LED+PWR ON+RESET); 1 * AT or ATX Select Jumpe |
| Environment |
Operating Temp. |
0 ~ 60 °C w/ 0.7m/s Airflow |
| Storage Temp. |
-20 ~ 75 °C (-4~167 °F) |
| Relative Humidity |
40 °C @ 95%, Non-Condensing |
Physical
Characteristics |
Dimensions |
450* 133.2* 482 mm (W* H* D) |
| Net Weight |
10.5 KG (The final weight is subject to the actual configuration) |
| Regulation |
EMC |
TBD |
| Safety |
TBD |
