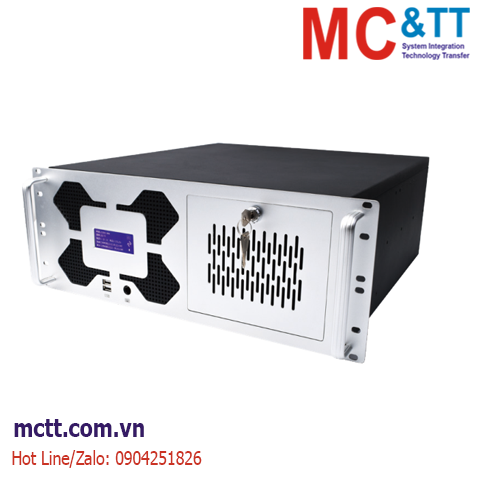

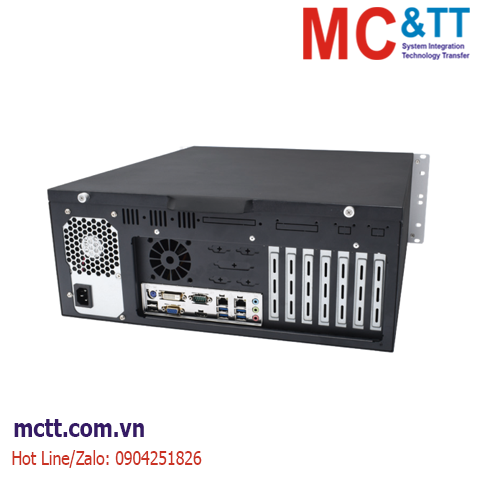

Máy tính nhúng công nghiệp 4U Rack mount TP-IPC RMPC-610E-12S43

Máy tính nhúng công nghiệp 4U Rack mount TP-IPC RMPC-610E-12S43

Mã sản phẩm: RMPC-610E-12S43

Thương hiệu: TP-IPC

Tình trạng: Còn hàng

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Máy tính nhúng công nghiệp 4U Rack mount TP-IPC RMPC-610E-12S43

Tính năng

Supports 7-slot PCI/PCIE full-length expansion slots with ruggedised
shockproof design.
Adopts modular Intel® 12th Generation Core / Pentium/ Celeron Desktop highperformance processors.
Full-size chassis design, rich expansion interface, support for customisation
Front-loaded industrial computer status monitoring module (CPU, fan,
temperature and voltage)
Full aluminium alloy non-marking panel, new design, high-end atmosphere
On-board 2-channel Intel Gigabit LAN card, 4-channel RS232 and 2-channel RS232/RS485 serial ports

Thông số kỹ thuật

Model	RMPC-610E-12S43
Supported OS	Windows 10 IoT Enterprise 2021 LTSC, Windows 10 (21H2), Windows 11 (21H2) or later, Linux Kernel 5.17 or later
Chipset	Intel® Alder Lake PCH-S, H610, TDP 6W
CPU	Socket	Support Intel® 12/13/14th Processor Family, LGA1700, support MAX CPU TDP: 8+4 Core 65W
RAM	Type&Qty	2 * Non-ECC U-DIMM Slot, up to 2*32GB, support up to DDR4-3200MHz
Storage Device	SATA [1]	3 * SATA3.0 7P Upright Connector, SATA signal of M.2_PCIESSD_M1 colay with SATA. (BOM selectable)
Storage Device	M.2 [2]	1 * M.2 Key-M Slot (PCIE 2x/SATA, Default SATA, Support SATA SSD, 2242/2280)
Extended Capabilities	Expansion Slots	1 * PCI-E 16x Slot (PCIe 16X, GEN4) 2 * PCI-E 4x Slot (PCIe 2X, GEN3) [3] 1 * PCI-E 4x Slot (PCIe 2X, GEN3, PCIE_4X_SLOT3) [2] 3 * PCI Slot 1 * PCI CLK 66MHz Enable/Disable Select Jumper
I/O Interface	COM	1 * RS232 (COM1, DB9/M) 3 * RS232 (COM2/5/6, BOX Header) 2 * RS232/ RS485 (COM3-4, BOX Header, COM3 and COM4 are RS232 by default. COM3 can be RS485 selecting by jumper and setting BIOS to RTS mode. COM4 can be RS485 selecting by jumper and setting BIOS to RTS mode.)
	Ethernet	RJ45_USB1 (RJ45): 1 * Intel I219-V GbE LAN Chip (10/100/1000Mbps) RJ45_USB2 (RJ45): 1 * Intel I225-V GbE LAN Chip (10/100/1000Mbps)
	USB	4 * USB3.0 (TYPE-A, Rear IO) 2 * USB2.0 (TYPE-A, Rear IO) 1 * USB2.0 (Vertical TYEP-A, Internal) [4] 3 * USB2.0 (Header, Internal) [4]
	Video [1]	1 * DVI-D (DVI-I): Support DVI-D, max resolution up to 1920x1200@60Hz 1 * HDMI 1.4b (TYPE-A): up to 4096x2160@30Hz 1 * VGA (DB15/F): max resolution up to 1920x1200@60Hz
	Audio	Realtek Audio HDA Codec, 1 * Line-out + Line-in + MIC 3.5mm Jack 1 * Front Audio Header (Line-Out + MIC) 1 * SPDIF Out Header
	Power Supply	ATX Standard (24P + 8P); Optional 300W/ 500W/ 750W/ 1250W ATX Power Source
	Other	SLB 9670VQ2.0, TPM2.0 (not onboard by default), Support Intel PTT Default 1 * 8-bit GPIO 1 * PS/2 Connector (Keyboard & Mouse) 1 * Front Panel Header (HDD LED+PWR LED+PWR ON+RESET)
Environment	Operating Temp.	0 ~ 60 °C w/ 0.7m/s Airflow
	Storage Temp.	-20 ~ 75 °C (-4~167 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	490175 514.98 mm (W* H* D)
Physical Characteristics	Net Weight	11.5KG
Regulation	EMC	TBD
Regulation	Safety	TBD

Kích thước sản phẩm

Bộ xử lý CPU

CPU	Code Name	P-Core	E-Core	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ i3 - 12100	Alder Lake	4	0	8	4.30 GHz	3.3 GHz	12 MB Intel® Smart Cache	60~89W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ i5 - 12500	Alder Lake	6	0	12	4.60 GHz	3.0 GHz	18 MB Intel® Smart Cache	65~117 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ i7 - 12700	Alder Lake	8	4	20	4.9 GHz	1.4 GHz	25 MB Intel® Smart Cache	65~180W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ i3 - 13100	Raptor Lake	4	0	8	4.10 GHz	2.2 GHz	12 MB Intel® Smart Cache	60~110W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ i5 - 13500	Raptor Lake	6	8	20	4.40 GHz	2.0 GHz	24 MB Intel® Smart Cache	65~154 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ i7 - 13700	Raptor Lake	8	8	24	4.7 GHz	1.4 GHz	30 MB Intel® Smart Cache	65~219W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ i3 - 14100	Raptor Lake	4	0	8	4.40 GHz	2.7 GHz	12 MB Intel® Smart Cache	60~110W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ i5 - 14500	Raptor Lake	6	8	20	4.80 GHz	1.7 GHz	24 MB Intel® Smart Cache	65~154 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ i7 - 14700	Raptor Lake	8	12	28	5.2 GHz	1.3 GHz	33 MB Intel® Smart Cache	65~219W	DDR4	Intel® HD Graphics 770, 32EUs

Phụ kiện mua thêm

Optional Items	Qty
Power cable 3-pin 150cm, USA type -	-
Power cable 3-pin 150cm, EU type -	-
Power cable 3-pin 150cm, UK type -	-
VESA mount kits -	-
DIN Rail mount kits	-

Download

Datasheet
