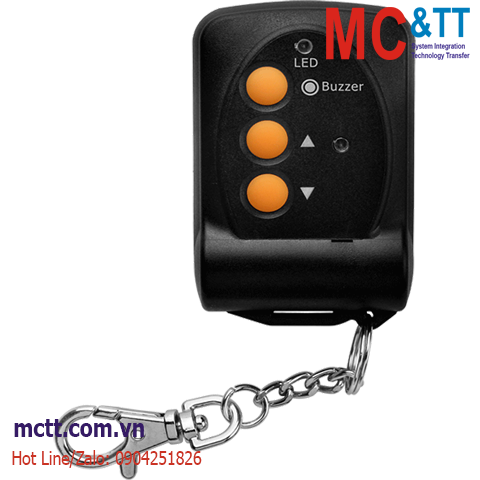

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-T02 CR
Feature
- Supports 16 segments setting of RF channels
- Supports 16 segments setting of RF power
- Built in a buzzer and supports remote enabling buzz function
- Built in battery low power LED indicator
- Built in 2.4GHz 3dBi PCB directional antenna
- ISM 2.4GHz operating frequency
- Direct Sequence Spread Spectrum (DSSS) RF technology
- Wireless transmission range up to 100 m (Line of Sight)
- Low power consumption design(1 pcs CR123A battery, when operating temperature from +20° C~+60° C, it can be used 1 years)
Introduction
WLS-T02 is a 2.4GHz wireless transmitter (called Tag) by battery supported, it can broadcast automatically 2.4GHz wireless location packages to WLS-R01. WLS-T02’s wireless frequency use ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and WLS-T01 supports 16 sectors of RF power setting. The user can use the button to adjust the above settings. In addition, WLS-T02 supports a buzzer, low battery power indicator, and built in Node ID, 3dBi directional PCB antenna and other user-friendly design can effectively reducing the size for the user to hook it on an equipment, and users can remote enabling the buzz function to find the equipment quickly. The wireless transmission range (line of sight, LOS) of WLS-T02 is 100 meters, and WLS-T02 uses low power consumption design architecture, when the user installs a CR-123A battery (3.0 VDC) and the wireless transmission interval is 3 seconds, operating temperature in +20℃ to +60℃, the use of time can be up to 1 years, if battery will low power, the user can change the new battery by himself, so WLS-T02 very suitable for use in item tracking, personnel movements in hazardous areas, factory regional management and other applications.
Application
Specifications
| Alarm and Event |
| Alarm Triggers |
Key of disable buzz x 2, buzzer x 1 |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Screw |
| LED Indicators |
| Status |
1 x Buzzer
1 x Low battery power |
| RF |
| Antenna |
2.4GHz-3dBi PCB Directional Antenna |
| Channels |
16 |
| Frequency Band |
2.4GHz |
| Modulation |
OQPSK (Offset Quadrature Phase-shift Keying) |
| Spread Spectrum |
DSSS (Direct-Sequence Spread Spectrum) |
| Transmission Power |
16±1dBm (Default) / 17dBm (Max.) |
| Transmission Distance (LoS) |
100 m (Typical) |
| Power |
| Input Range |
1 x CR123A (3.0 VDC) |
| Consumption |
Buzzer no buzz: 267uW@3VDC / 2.13mAh@1 Day (3 second Tx interval)
Buzzer buzz: 90mW@3VDC / 30mAh@1 hour (3 second Tx interval, and 1 second buzz interval) |
| Mechanical |
| Dimensions (mm) |
43 x 70 x 21 (W x L x H) |
| Installation |
Hook |
| Environment |
| Operating Temperature |
-25 ~ +70°C (No battery included)
-25 ~ +60°C (Battery included) |
| Storage Temperature |
-30 ~ +80°C (No battery included)
-20 ~ +45°C (Battery included) |
| Humidity |
45 ~ 85% RH(Non-condensing, No battery included)
20 ~ 65% RH(Non-condensing, Battery included) |
Download
Datasheet
Documents
Ordering Information
| WLS-T02 CR |
Battery Standard Type Wireless Locating System Transmitter with Buzzer (100 m) (Asia Only) (RoHs) |
