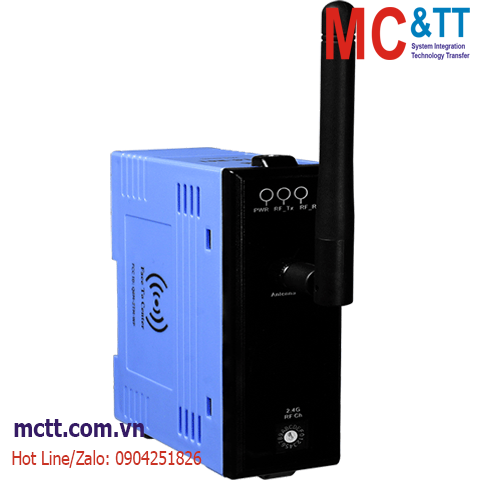

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-R01 CR
Feature
- Supports data conversion from ISM 2.4GHz frequency to 400MHz frequency
- Supports 16 segments of RF channels with 2.4GHz and 400MHz
- Supports RSSI filtering function
- Built in 2.4GHz 3dBi PCB directional antenna
- 2.4GHz wireless transmission range up to 100 m (Line of Sight)
- 400MHz wireless transmission range up to 500 m (Line of Sight)
- Supports external DIP and rotary switches for easy configuration
- Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
- DIN-Rail mountable
Introduction
WLS-R01 is a 2.4GHz wireless receiver, it is mainly installed in fixed position to receive the 2.4GHz wireless Locating data of WLS-T01 broadcast. In the other hand, WLS-R01 is also a wireless converter (called Router) from 2.4GHz to 400MHz. it can effectively use 400MHz high transmittance characteristics to extend the wireless transmission distance, and don't need add wire between the communication paths. The WLS software in the PC can use transparent function of RFU-400 to poll the wireless Locating data of WLS-T01, and then calculate the relative position of WLS-T01 by the algorithm. WLS-R01 include two wireless frequency, one is ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and the wireless transmission range (line of sight, LOS) is 100 meters; the other is 400MHz frequency band total have 16 channels, the range of 16 channels are 429.1750MHz to 429.2375MHz and 429.8125 MHz to 429.9250 MHz, and the wireless transmission range (line of sight, LOS) is 500 meters. In addition, the user can divide four groups ID in the each 400MHz channel to avoid adjacent channels affect each other. The user can simply use the DIP switch and rotation switch to configure the parameter, and don't need to add wire between the communication paths, that can speed up to build the system, and reduce the cost, so it very suitable for use in item tracking, personnel movements, factory regional management and other applications.
Application
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, ±8 kV Air for Random |
| Surge (IEC 61000-4-5) |
±3 kV for Power |
| LED Indicators |
| Status |
1 x Power
1 x 400MHz Transmitted status
1 x 2.4GHz Received status |
| RF |
| Antenna |
2.4GHz:2.4GHz - 3dBi PCB directional antenna
400MHz: 429MHz – 0dBi Omni directional antenna |
| Channels |
16 |
| Frequency Band |
2.4GHz: 2.4GHz
400MHz: Channel 0~9- 429.8125 MHz to 429.9250 MHz;
Channel A~F- 429.1750 MHz to 429.2375 MHz |
| Modulation |
2.4GHz:OQPSK (Offset Quadrature Phase-shift Keying) |
| Spread Spectrum |
2.4GHz:DSSS (Direct-Sequence Spread Spectrum) |
| Transmission Power |
2.4GHz:16±1dBm (Default) / 17dBm (Max.)
400MHz:19dBm (Default / Max.) |
| No. of Nodes |
2.4GHz:90 (Max., Tag Tx interval is 3 seconds) |
| Transmission Distance (LoS) |
2.4GHz:100m (Default)
400MHz:500m(Default) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
33 x 110 x83 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25°C ~ +75°C |
| Storage Temperature |
-30°C ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WLS-R01 CR |
General Type Wireless Locating System Receiver (Asia Only) (RoHS) |
