Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-T01 CR
Feature
- Supports the button help function
- Supports 16 segments setting of RF channels
- Supports 16 segments setting of RF power
- Built in battery low power LED indicator
- Built in 2.4GHz 3dBi PCB directional antenna
- ISM 2.4GHz operating frequency
- Direct Sequence Spread Spectrum (DSSS) RF technology
- Wireless transmission range up to 100 m (Line of Sight)
- Low power consumption design(1 pcs CR123A battery, when operating temperature from +20° C~+60° C, it can be used 2 years)
Introduction

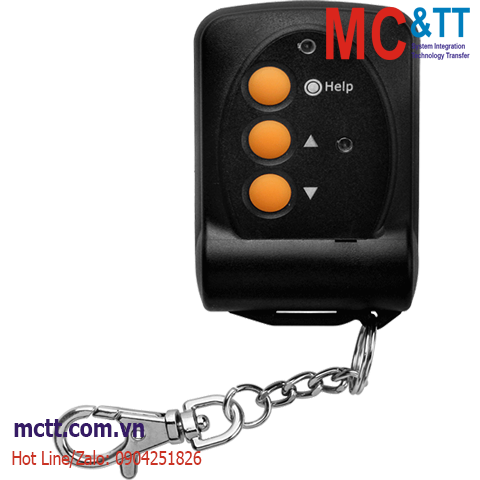

WLS-T01 is a 2.4GHz wireless transmitter (called Tag) by battery supported, it can broadcast automatically 2.4GHz wireless Locating packages to WLS-R01. WLS-T01's wireless frequency use ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and WLS-T01 supports 16 sectors of RF power setting. The user can use the button to adjust the above settings. In addition, WLS-T01 supports help button, low battery power indicator, and built in Node ID, 3dBi directional PCB antenna and other user-friendly design can effectively reducing the size for the user to carry it. The user can also send a distress signal in an emergency situation, and let people know his relative position to support him. The wireless transmission range (line of sight, LOS) of WLS-T01 is 100 meters, and WLS-T01 uses low power consumption design architecture, when the user installs a CR-123A battery (3.0 VDC) and the wireless transmission interval is 3 seconds, operating temperature in +20°C to +60°C, the use of time can be up to 2 years, if battery will low power, the user can change the new battery by himself, so WLS-T01 very suitable for use in item tracking, personnel movements in hazardous areas, factory regional management and other applications.
Application
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Screw |
| LED Indicators |
| Status |
1 x Help
1 x Low battery power |
| RF |
| Antenna |
2.4GHz-3dBi PCB Directional Antenna |
| Channels |
16 |
| Frequency Band |
2.4GHz |
| Modulation |
OQPSK (Offset Quadrature Phase-shift Keying) |
| Spread Spectrum |
DSSS (Direct-Sequence Spread Spectrum) |
| Transmission Power |
16±1dBm (Default) / 17dBm (Max.) |
| Transmission Distance (LoS) |
100 m (Typical) |
| Power |
| Input Range |
1 x CR123A (3.0 VDC) |
| Consumption |
166uW@3VDC / 1.33mAh@1 Day (3 second Tx Interval) |
| Mechanical |
| Dimensions (mm) |
43 x 70 x 21 (W x L x H) |
| Installation |
Hook |
| Environment |
| Operating Temperature |
-25 ~ +75°C (No battery included)
-25 ~ +60°C (Battery included) |
| Storage Temperature |
-30 ~ +80°C (No battery included)
-20 ~ +45°C (Battery included) |
| Humidity |
10 ~ 90% RH(Non-condensing, No battery included)
20 ~ 65% RH(Non-condensing, Battery included) |
Download
Datasheet
Documents
Ordering Information
| WLS-T01 CR |
Battery Standard Type Wireless Locating System Transmitter with Help Button (100 m) (Asia Only) (RoHs) |
