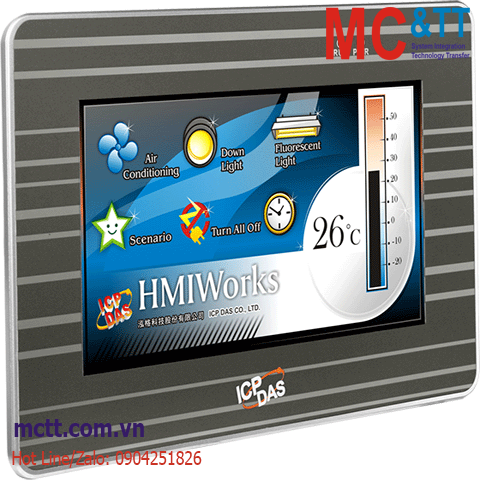

Màn hình cảm ứng HMI 7 inch 2xRS-232/485 + Ethernet Modbus RTU/TCP ICP DAS VPD-173N-64 CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- Serial communication interfaces
- RTC (Real Time Clock)
- Front Panel: IP65 Waterproof
- GUI design
- Free HMIWorks development tool
- Supports C language and Lader Designer
- Supports user-defined third party protocol (C language)
Introduction
VPD-173 series HMI is designed for building, home and industrial automation. VPD-173 series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. The VPD-173 series expands its memory to 16 MB SDRAM and 16 MB Flash, while the VPD-173-64 series expands its memory to 64 MB SDRAM and 64 MB Flash.Inshort, it is the best choice to upgrade the mechanical switch to intelligent control pads.
HMIWorks is a free development software for the VPD series HMI devices, which provides Ladder Designer for PLC users, and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program of VPD-series devices when using Ladder Designer.
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
64 MB SDRAM/64 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
2 LED |
| COM Ports |
| Ports |
2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| Power |
| Consumption |
3.6 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
217 mm x 153 mm x 33 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: NEMA 4 /IP65 |
| Environment |
| Operating Temperature |
-10 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VPD-173N-64 CR |
7" Touch HMI Device with 2 x RS-232/RS-485, Ethernet (PoE), RTC, 64 MB Flash (RoHS) |
