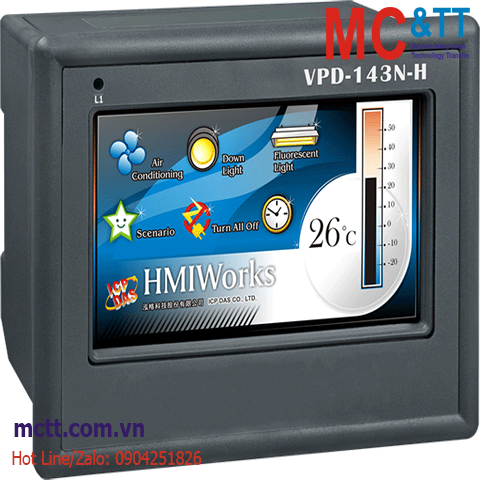

Màn hình cảm ứng HMI 4.3 inch 2xRS-232/485 + Ethernet Modbus RTU/TCP ICP DAS VPD-143N-H CR
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RTC (Real Time Clock)
- Serial communication interfaces
- Supports Ethernet and PoE
- I/O Expansion Boards: XV-Boards
- Front Panel: IP65 Waterproof
- GUI design
- Free HMIWorks development tool
- Supports C language and Lader Designer
- Supports user-defined third party protocol (C language)
Introduction
The TouchPAD VPD 4.3 inch H Series is a series of industrial touch HMI devices that features, 4.3" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485, and Ethernet (VPD-143-H/143N-H), enable integration into the system allowing users to control, monitor I/O at the remote sides and update firmware directly from the central computer. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.
HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI devices must be the most cost effective HMI device ever been in the market.
Application
https://mctt.vn/touchpad-tpd-vpd-icp-das
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
16 MB SDRAM/16 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
1 LED |
| COM Ports |
| Ports |
2 x RS-232/RS-485 including Self-Tuner |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| USB |
| Specification |
USB 1.1 Client (Firmware updates only) |
| Connector |
Mini-B |
| Power |
| Consumption |
2.5 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
131 mm x 105 mm x 54 mm |
| Installation |
DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating |
Front Panel: IP65 |
| Environment |
| Operating Temperature |
-20 ~ +50°C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VPD-143N-H CR |
4.3" Touch HMI Device with 2 x RS-232/RS-485, Ethernet (PoE), RTC and USB Download Port (RoHS) |
