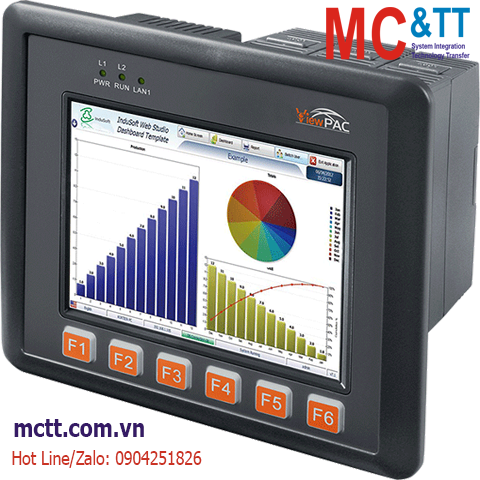

Màn hình cảm ứng lập trình nhúng InduSoft (300 tags) ViewPAC 5.7 inch CPU Cortex-A8+ WinCE 7.0 ICP DAS VP-1239-CE7 CR
Features
• Cortex-A8 CPU (32-bit & 1 GHz)
• IP65 Compliant Front Panel
• 5.7"/10.4"/15" TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
• Rubber Keypad with 6 Keys
• Audio with MIC-In and Line-Out
• 64-bit Hardware Serial Number for Software Protection
• 3 Slots for High Profile I/O Modules
• Rich I/O Expansion Ability
‣Ethernet
‣RS-232/422/485
‣FRnet
‣CAN bus
• MRAM (128 KB)
• One Ethernet Port
• 2 Serial Ports (RS-232, RS-485)
• Operating Temperature: -20 ~ +70 °C
Introduction
VP-1239-CE7 / VP-4239-CE7 / VP-6239-CE7 is the new generation WinCE based InduSoft PAC of ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a Cortex-A8 CPU (1GHz) running Windows CE .NET 7.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7" TFT LCD and a rubber keypad. Its operating system, Windows CE .NET 7.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. InduSoft Web Studio Runtime is also pre-installed. InduSoft Web Studio is a powerful, integrated collection of automation tools that includes all the building blocks needed to develop modern Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and embedded instrumentation and control applications. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE.NET 7.0 |
| Protocol |
Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
SDRAM 128 MB |
| Storage |
Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory |
MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer |
Yes |
| Display |
| Size |
5.7" TFT (Resolution 640 x 480) |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
3 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Rubber Keypad |
6 Keys |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000Base-TX |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
7.2 W (0.3 A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
182 x 158 x 125 (W x L x H) |
| Ingress Protection Rating |
Front panel: IP65 |
| Environment |
| Operating Temperature |
-20 °C ~ +70 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-1239-CE7 CR |
5.7" LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots (WinCE 7.0) (RoHS) |
