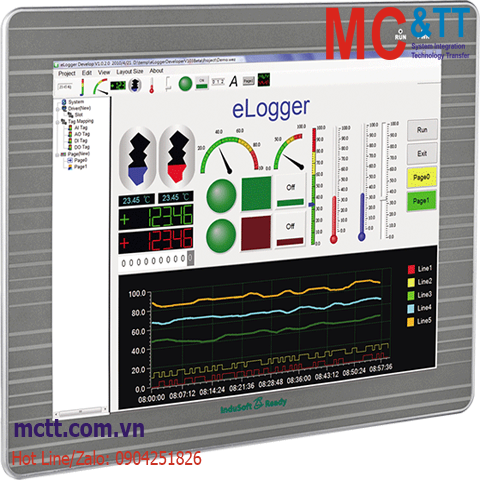

Màn hình cảm ứng lập trình nhúng InduSoft (300 tags) ViewPAC 15 inch CPU Cortex-A8+ WinCE 7.0 ICP DAS IWS-6201-CE7 CR
Features
• InduSoft Runtime (CE 300/1500 tags) Inside
• Support Modbus, OPC, TCP/IP Client/Server
• DCON Driver for ICP DAS I/O modules provided
• Makes connectivity for the “internet of things” and mobile devices easily.
• 7”/10.4”/15" LCD
• Resolution: 800 x 480/800 x 600/1024 x 768
• Resistive Touch Panel
• Cortex-A8, 1.0 GHz CPU
• Windows CE 7.0
• NEMA 4/IP65 Compliant Front Panel
• Operating Temperature: -10 ~ +60°C
Introduction
The IWS PAC series is the new generation WinCE 7.0 based InduSoft PAC of ICP DAS. It combines a RISC-based CPU board, TFT LCD touch screen to create a ruggedized, flat panel computer perfect for a variety of control and HMI applications. It provides a variety of connectives including Gigabit Ethernet, USB port, RS-232 and RS-485. The operating system is pre-installed in the on-board Flash memory. Remote I/O expansion is available using our Ethernet I/O modules, RS-485 I/O modules, Wi-Fi and ZigBee wireless I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP6 5 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
Application
Specifications
| Software |
| OS |
Microsoft Windows Embedded Compact 7 |
| Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support |
.NET Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for Visual Studio.Net |
| Main Unit |
| CPU |
Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number |
Yes, for software copy protection |
| System Memory |
SDRAM 512 MB (DDR3) |
| Storage |
Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory |
MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock |
Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer |
0.8 second |
| Display |
| Size |
15” (4:3) |
| Backlight Life |
50000 |
| Brightness |
400 cd/m2 |
| Resolution |
1024 x 768 |
| Touch Panel |
5-wire, resistive type; light transmission: 80% |
| Contrast Ratio |
20.834027777778 |
| LED Indicators |
| Status |
2 x Power and Run |
| COM Ports |
| Ports |
1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45 10/100/1000 Base-TX |
| Power |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
16 W |
| Powered from PoE |
IEEE 802.3af |
| Mechanical |
| Dimensions (mm) |
381 x 305 x 65 |
| Panel Cut-Out (mm) |
362 x 286 ± 1 |
| Installation |
Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Environment |
| Operating Temperature |
-10 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| IWS-6201-CE7 CR |
15" LCD InduSoft (300 tags) Based ViewPAC w/o I/O slot (WinCE 7.0) (RoHS) |
