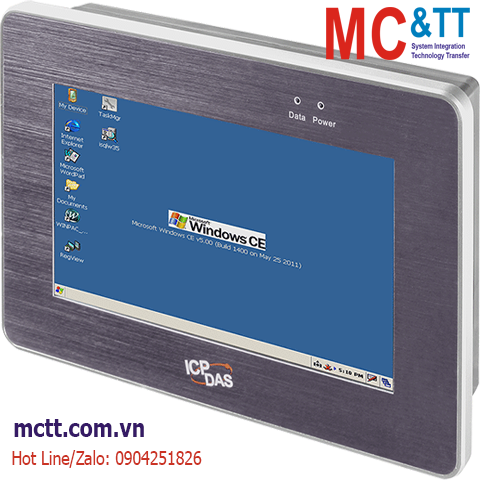

Màn hình cảm ứng công nghiệp 7 inch ICP DAS TP-2070 CR

Chia sẻ:
Mã sản phẩm: TP-2070
Thương hiệu: ICP DAS
Tình trạng:

7" 800 x 480 Resistive Touch Panel with RS-232 or USB, and Power Supply

Liên hệ
Mô tả

Màn hình cảm ứng công nghiệp 7 inch ICP DAS TP-2070 CR

Features

• 7" LCD supports 800 x 480 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows 2k/XP/Vista/7/8/10/WES/WinCE 5.0/6.0/7.0/Linux
• LED backlight technology
• IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C

Introduction

The TP-2070 Panel Mount Monitor adopts a standard 7" TFT LCD screen with rugged aluminum front bezel and supports 800 x 480 resolution, and -20 ~ +70°C operating temperature. The TP-2070 is also guaranteed to work with ICP DAS PAC control system, such as WP-5000 series, LinPAC series and XP-9000 series.

Application

Specifications

Display
Size 7"
Backlight Life 20,000 hours
Brightness 400 cd/m2
Resolution 800 x 480
Touch Panel 4-wire, analog resistive; light transmission: 80%
Contrast Ratio 500:1
LED Indicators
Status 1 x Power, 1 x Display
COM Ports
Ports 1 x RS-232 (Combo)
HMI
Power Switch Yes
OSD Control Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness
USB
Ports 1
Power
Input Range +12 ~ 48 VDC
Consumption 5.0 W
Mechanical
Casing Plastic
Dimensions (mm) 213 x 148 x 44 (W x L x H)
Installation Panel Mounting, VESA Mounting (75 mm x 75 mm)
Ingress Protection Rating Front panel: IP65
Weight 2.6 kg
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Specification Memo

RS-232 and USB cannot be used simultaneously.

Download

Datasheet

Documents

Ordering Information

TP-2070     CR  7" 800 x 480 Resistive Touch Panel with RS-232 or USB, and Power Supply (RoHS)
