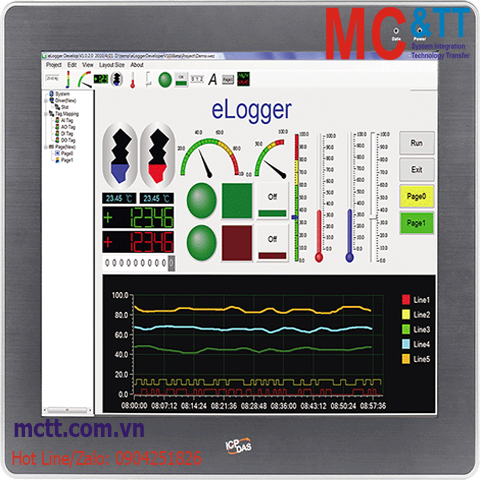

Màn hình cảm ứng công nghiệp 17 inch ICP DAS TP-7170 CR
Features
• 17" LCD supports 1280 x 1024 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows 2k/XP/Vista/7/8/10/WES/WinCE 5.0/6.0/7.0/Linux
• LED backlight technology
• NEMA 4/IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C
Introduction
The TP-7170 Panel Mount Monitor adopts a standard 17" TFT LCD screen with rugged aluminum front bezel and supports 1280 x 1024 resolution, and -20 ~ 70°C operating temperature. The TP-7170 is also guaranteed to work with ICP DAS PAC control system, such as WP8000 series, LinPAC series and XP-9000 series.
Application
Specifications
| Display |
| Size |
17" |
| Backlight Life |
50,000 hours |
| Brightness |
350 cd/m2 |
| Resolution |
1280 x 1024 |
| Touch Panel |
5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio |
500：1 |
| LED Indicators |
| Status |
1 x Power, 1 x Display |
| COM Ports |
| Ports |
1 x RS-232 (Combo) |
| HMI |
| Power Switch |
Yes |
| OSD Control |
Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Consumption |
22.0 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
413 x 359 x 70 (W x L x H) |
| Installation |
Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating |
Front panel: IP65 |
| Weight |
5.3 kg |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Specification Memo
RS-232 and USB cannot be used simultaneously.
Download
Datasheet
Documents
Ordering Information
| TP-7170 CR |
17" 1280 x 1024 Resistive Touch Panel with RS-232 or USB, and Power Supply (RoHS) |
