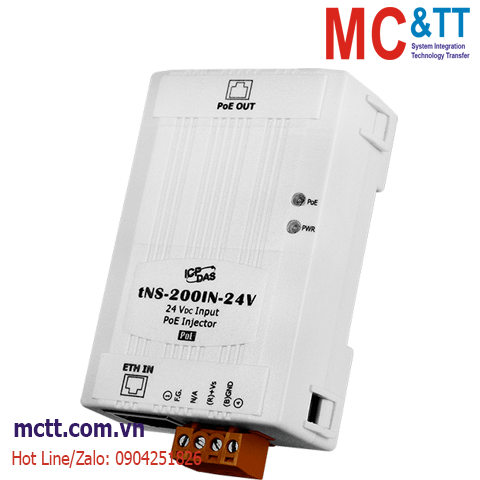

Bộ Injector PoE công nghiệp 24VDC 15W ICP DAS tNS-200IN-24V CR
Feature
• Auto-detection of PD (powered devices)
• Over-temperature, over-current and over/under-voltage detection
• No user settings
• Power Sourcing Equipment (PSE) operation
• tNS-200IN-24V supplies up to 15.4W
• Tiny packaging fi ts on your DIN-Rail Mounting
• +18 ~ +32 VDC power input
Introduction
The tNS-200IN-24V Single Port PoE Injector supports PoE powered devices in industrial environments. The tNS-200IN-24V delivers both data and power over a single standard Ethernet cable to a PoE Powered Device designed to receive both Data and Power through its RJ-45 port connector. The tNS-200IN-24V is designed with +24 VDC to +48 VDC boost for PoE application where +48 VDC power supply is not available.
Application
Specifications
| LED Indicators |
| Status |
Power, Power Device is detected |
| Ethernet |
| Ports |
1 x RJ-45 in,
1 x PoE out,
10/100Base-T(X) |
| PoE Technology |
| PoE Compliance |
100% IEEE 802.3af compliant |
| PoE Power |
Up to 15.4 W |
| PoE Operation |
Automatic detection and power management |
| PoE Pin Assignments |
V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Disconnect Mode |
DC disconnect |
| PoE Voltage |
+48 VDC depending on power input |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+18 ~ +32 VDC |
| Consumption |
0.8 A@ 24 VDC with PD full loading |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
52 x 86 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-40 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| tNS-200IN-24V CR |
10/100 Base-TX, PoE injector for 1 PoE port (uses spare pairs), +24 VDC input, PoE 15.4W (RoHS) |
