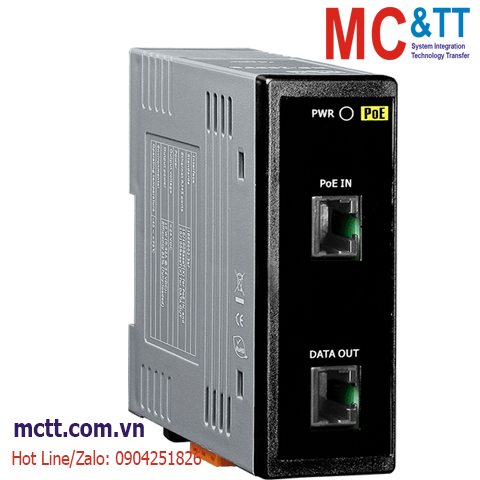

Bộ Splitter PoE công nghiệp ICP DAS NS-200PS CR
Feature
• Supports 10/100/1000 Base-TX for PoE in and Data out
• IEEE 802.3af compliant split power/data from PoE equipment
• Power isolation and short circuit protection for power output
• Supports output power up to 10 W at 24 VDC
• Slim packaging fits on your DIN-Rail Mounting
• Supports operating temperatures from -40 °C ~ +75 °C
Introduction
The NS-200PS plays the role of PD, and splits the data signal and power signal that are transmitted from the PSE. The NS-200PS plays a dual role of providing power to industrial devices, and enabling Ethernet connections.
Application
Specifications
| Ethernet |
| Standards |
IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| PoE Technology |
| Type |
Powered Device (PD) |
| PoE Operation |
Automatic detection and classification (power is accepted on either the signal or unused pairs) |
| PoE Voltage |
+46 VDC ~ +54 VDC |
| Output |
| DC Voltage |
24 VDC |
| Rated Power |
10 W |
| Rated Current |
0.42 A |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 107 x 78 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-40 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| NS-200PS CR |
Industrial PoE Splitter (RoHS) |
