Module RS-485 Modbus RTU 8 kênh đầu vào nhiệt (Thermistor) ICP DAS tM-TH8 CR
Features
- 8-channel Thermistor Input
- User-defined Thermistor Types
- Dual Watchdog
Introduction

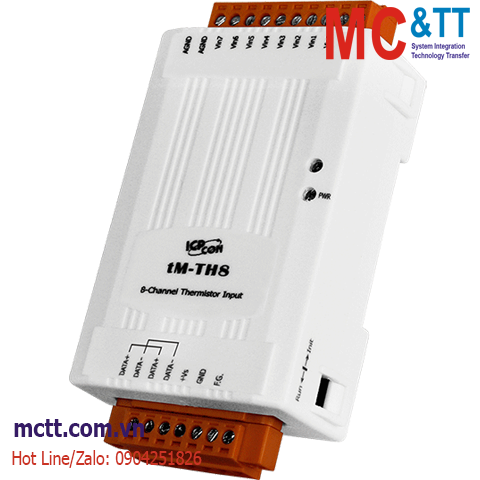

The tM-TH8 is an 8-channel isolated thermistor input module that can be used for measuring temperatures via a thermistor. Many types of thermistors are supported and user-defined types can be added by specifying the Steinhart coefficients, if necessary. The added 2500 VDC intra-module isolation and 120 VDC overvoltage protection for the thermistor on the tM-TH8 ensure that the module will operate with higher reliability.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
8 |
| Type |
Thermistor |
| Sensor Type |
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, SI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined |
| Resolution |
16-bit |
| Accuracy |
±1% |
| Sampling Rate |
8 Hz total |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol |
DCON, Modbus RTU, Modbus ASCII |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
1 W Max. |
| Powered from Terminal Block |
10 ~ 30 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 98 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tM-TH8 CR |
8-channel Isolation Thermistor Input Module with High Voltage Protection (RoHS) |
