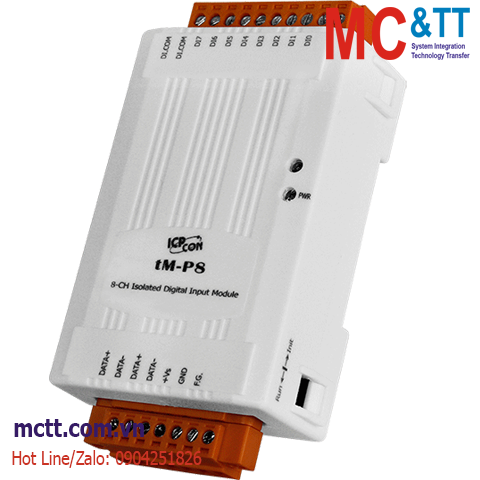

Module RS-485 Modbus RTU 8 kênh đầu vào số DI ICP DAS tM-P8 CR
Features
- Wet Contact, Source- or Sink-type Digital Inputs
- Photocoupler Isolation
- Dry Contact and Wet Contact Selectable via Wire Connections
- All DI Channels Can Be Used As 16-bit Counters
- Dual Watchdog
Introduction
The tM-P8 offers 8 channels for digital input, each of which features photocoupler isolation. In addition, digital input can be either sink- or source-type using wire connections and all channels can be used as 16-bit counters. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. All channels not only feature photocoupler isolation but can also be used as 16-bit counters. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
Applications
• All Kinds of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 ~ +50 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 KΩ, 0.5 W |
| Overvoltage Protection |
±70 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol |
DCON, Modbus RTU, Modbus ASCII |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
0.2 W Max. |
| Powered from Terminal Block |
10 ~ 30 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 98 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tM-P8 CR |
8-channel Isolation DI (Wet) Module (RoHS) |
