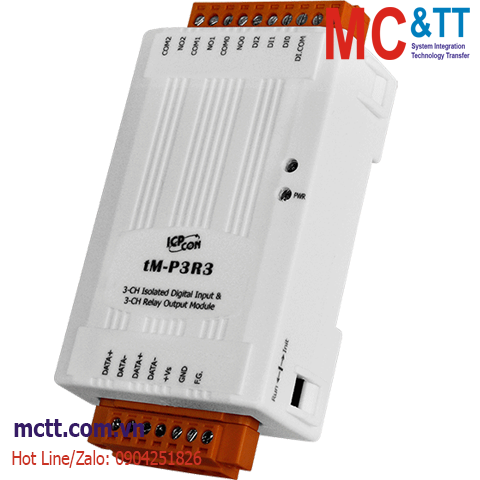

Module RS-485 Modbus RTU 3 kênh DI + 3 kênh Relay ICP DAS tM-P3R3 CR

Features

  • Wet Contact, Source- or Sink-type Digital Inputs
  • Relay Outputs
  • Photocoupler Isolation
  • All DI Channels Can Be Used As 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Dual Watchdog

Introduction

The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are Form A-type relays, while the input is based on the sink- or source-type using a wire connection. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

Applications

• All Kinds of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 3
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +3.5 ~ +50 VDC
OFF Voltage Level +1 VDC Max.
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 10 kΩ, 0.5 W
Overvoltage Protection 70 VDC
Relay Output
Channels 3
Type Power Relay, Form A (SPST N.O.)
Operate Time 6 ms
Release Time 3 ms
Electrical Endurance VDE:
5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C
5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C
UL:
5 A @250 VAC/30 VDC 6,000 ops
3 A @250 VAC/30 VDC 100,000 ops
5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C
Mechanical Endurance 20,000,000 ops at no load (300 ops/minute)
Surge Strength 250 VAC or 30 VDC
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Protocol DCON, Modbus RTU, Modbus ASCII
Power
Reverse Polarity Protection Yes
Consumption 0.8 W Max.
Powered from Terminal Block 10 ~ 30 VDC
Mechanical
Dimensions (mm) 52 x 98 x 27 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

tM-P3R3     CR  3-channel Isolation DI (Wet) and 3-channel Power Relay Module (RoHS)
