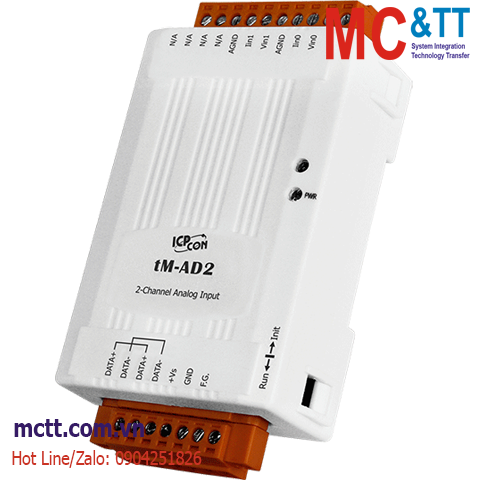

Module RS-485 Modbus RTU 2 kênh đầu vào tương tự AI ICP DAS tM-AD2 CR

Chia sẻ:
Mã sản phẩm: tM-AD2
Thương hiệu: ICP DAS
Tình trạng:

2-channel Isolated Analog Input Module

Liên hệ
Mô tả

Module RS-485 Modbus RTU 2 kênh đầu vào tương tự AI ICP DAS tM-AD2 CR

Features

  • 2-channel Single-ended Inputs
  • Voltage Inputs and Current Inputs
  • Adjustable Sampling Rate
  • Dual Watchdog

Introduction

The tM-AD2 is an analog input module that includes 2 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides high overvoltage protection of 120 VDC. The sampling rate of the tM-AD2 is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.

Applications

  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Food and Beverage Systems
  • Semiconductor Fabrication
  • Control Systems

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 2 Single-ended
Type Voltage,
Current
Range 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution Normal Mode: 14-bit
Fast Mode: 12-bit
Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5%
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 200 Hz
Input Impedance Voltage: 10 MΩ
Current: 125 Ω
Overvoltage Protection 120 VDC
Overcurrent Protection 50 mA at 110 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Protocol DCON, Modbus RTU, Modbus ASCII
Power
Reverse Polarity Protection Yes
Consumption 0.7 W Max.
Powered from Terminal Block 10 ~ 30 VDC
Mechanical
Dimensions (mm) 52 x 98 x 27 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

tM-AD2     CR  2-channel Isolated Analog Input Module with High Voltage Protection (RoHS)
