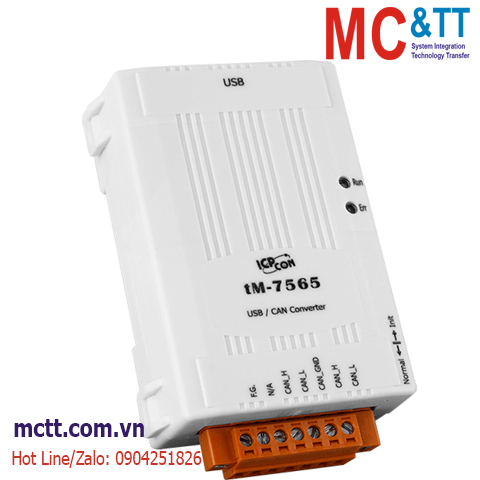

Bộ chuyển đổi USB sang CAN ICP DAS tM-7565 CR


  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with ISO 11898-2 standard
  • Support various CAN baud rate from 10K bps to 1M bps
  • Support user-defined CAN baud rate
  • Support various USB baud rate from 110 bps to 230400 bps
  • Build-in selectable 120 Ω terminal resistor
  • Software configurable CAN and USB communication parameters
  • Power, data flow, and error indicator for CAN and USB
  • Watchdog inside
  • Support pair connection mode
  • Software buffer on CAN bus side and USB side
  • Support user-defined end of characters on pair connection mode
  • Support listen only mode
  • Support time stamp response on USB side


ICP DAS has provided various USB to CAN product solutions which are widely recommended in the market. The USB to CAN converters can help users to implement the communication with CAN network via USB interface. In order to cater for costing requirement, we provide a new solution of USB to CAN converter-tM-7565. The tM-7565 is a tiny USB to CAN converter to fit for narrower environment as a result of its small size. Since it has USB interface, it is easily to be used via laptop. It has isolation on power side and on CAN bus side and it has a good performance. The function of tM-7565 can full compatibly with I-7565. In additional, it provides new function such as listen only. User can use this function to listen CAN bus messages and error detection. According to above features, tM-7565 is an economical and practical USB to CAN converter solution.

Moreover, we expand the functionalities of tM-7565 for some special application. In pair connection mode, tM-7565 can be used to communicate between two PC via USB. The application architecture may be as follows.


  • Factory Automation
  • Building Automation
  • Home Automation
  • Control System
  • Monitor System
  • Vehicle Automation


LED Indicators
Status 1 x Run LED: Power and Data Flow
1 x Err LED: Error
Specification USB 1.1 and 2.0 standard
Connector 1 x USB (Type B)
Driver Windows XP/7/10, Linux
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO 11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Input Range USB power delivery
Consumption 1 W
Casing Plastic
Dimensions (mm) 52 x 87 x 27 (W x L x H)
Installation DIN-Rail
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing




Ordering Information

tM-7565     CR  Intelligent tiny USB to CAN converter (RoHS)
Includes CA-USB18 (1.8M Cable)
