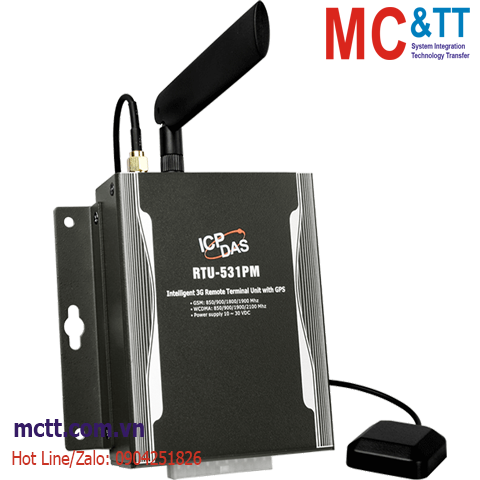

Modem RTU WCDMA (3G) + GPS ICP DAS RTU-531PM CR
Feature
- Automatic/continuous WCDMA/GPRS Link Management.
- Support M2M OPC server for SCADA system.
- Easy-to-use API tool for users to develop their applications by various program development tools.
- Be the WCDMA/GPRS I/O devices.
- Support GPS function.
- Local I/O linkage function to make the simple local control.
- Power supply +10 ~ +30 VDC.
Introduction
RTU-531PM is an intelligent Active 3G Remote Terminal Unit with GPS. Within the high performance 32 bit CPU, RTU-531PM is suit for the hard industrial environment. It features 3G module, 4 digital inputs, 2 digital outputs, 4 analog input, 2 thermistor inputs, 1 RS-232 and SD interface. It can be used in M2M application fields to transfer the local I/O, GPS data via WCDMA/GPRS by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. The simple I/O linkage function of RTU-531PM can reach the real time control in the local field. Therefore, RTU-531PM is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of WCDMA/GPRS and the Internet.
Application
Specifications
| CPU Module |
| CPU |
32 bit CPU |
| Flash |
512 Kbytes |
| SRAM |
64 Kbytes |
| Storage Expansion |
4GB max. |
| Real Time Clock |
Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x EXT
1 x 3G
1 x STA |
| 2G System |
| Data Transmission Rate |
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band |
850/900/1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| 3G System |
| Data Transmission Rate |
HSPA
Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps
HSDPA Max. 7.2 Mb/s
WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| GPS/GNSS |
| Acquisition Time |
Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 29 s(typical) |
| Protocol |
GPRMC format (NMEA 0183 version 3.01) |
| Sensitivity |
Tracking = up to -161 dBm (with external LNA)
Cold start = up to -148 dBm (with external LNA) |
| Support Channels |
56 |
| Analog Input |
| Channels |
4 |
| Type |
Voltage |
| Range |
±10V |
| Resolution |
16 bit |
| Digital Output |
| Channels |
2 |
| Load Voltage |
+30 V max. |
| Load Current |
100 mA max. |
| COM Ports |
| Ports |
1 x RS-232 (Configuration) |
| Mechanical |
| Dimensions (mm) |
89 x 124 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-40 ℃ ~ +80 ℃ |
| Humidity |
5~95% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| RTU-531PM CR |
3G Remote Terminal Unit with GPS (RoHS) (Asia Only) |
