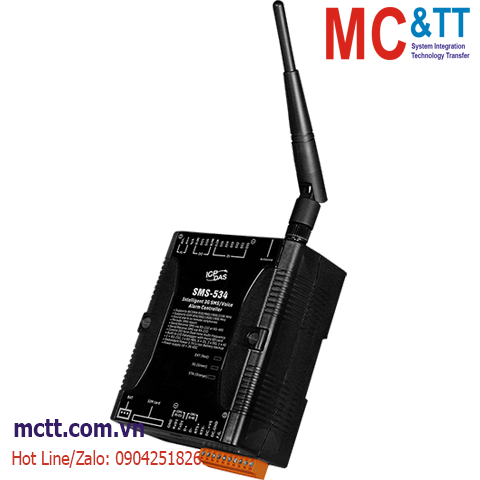

Bộ điều khiển cảnh báo SMS/3G ICP DAS SMS-534 CR
Feature
- Support Quad-band WCDMA 850/900/1900/2100 MHz.
- Support Quad-band GSM 850/900/1800/1900 MHz.
- Support SMS DBS software. (http://m2m.icpdas.com/SMS_DBS.html)
- Identify ASCII or Unicode SMS Automatically.
- Support max. 140 ASCII Characters.
- Support max. 70 Unicode Characters.
- Built-in ASCII Commands and SMS tunnel Communication Modes.
- Max. 10 Default Phone Numbers.
- Built-in Watch-dog Function.
- Support SMS setting and control.
- DI*6, DO*2, AI*1, RS232*1, RS485*1
- DO control by dual-tone multi-frequency.
- Digital input support NC(normal close)/NO(normal open)/Counter modes.
- Periodic SMS report.
- Voice Alarm and SMS triggered by DI trigger or exceed AI/Counter preset limits.
- Support simple command to send SMS via RS232.
- Support data log.
- Support DC +10 VDC ~ +30 VDC Power Input.
- Supports 3.7 V Li-ion Battery Backup.
- DIN Rail design.
Introduction
The SMS-534 is an intelligent 3G SMS/Voice controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. The SMS-534 also provides the sound alarm application with the pre-defined voice files. In addition, the DTMF function of the SMS-534 is for the applications with the keypad of phones to control the local I/O. And, With the SMS DBS software of ICP DAS, users can manage the SMS-534 in PC centrally.
Application
Specifications
| Software |
| Service |
SMS Alarm |
| CPU Module |
| CPU |
32 bit CPU |
| Flash |
512 Kbytes |
| SRAM |
32 Kbytes |
| Storage Expansion |
Up to 32G |
| Real Time Clock |
Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x EXT
1 x 3G
1 x STA |
| 2G System |
| Frequency Band |
850/900/1800/1900 MHz |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format |
Sending: UCS2
Receiving: UCS2/7bits |
| 3G System |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| Power Class |
Class 3(250mW @ WCDMA/HSPA) |
| Analog Input |
| Channels |
1 |
| Type |
Current |
| Range |
0 ~ 20 mA |
| Resolution |
12 bits |
| Sampling Rate |
1 samples/ second |
| Digital Input |
| Channels |
6 Channel (Counter 5~40Hz ) |
| Type |
Wet Contact |
| ON Voltage Level |
+3.5~24VDC |
| OFF Voltage Level |
+1V Max. |
| Digital Output |
| Channels |
2 Channel (isolation) |
| Load Voltage |
ON Voltage:+24.0 V
OFF Voltage: +1.0 V MAX |
| COM Ports |
| Ports |
1 x RS-232(Configuration)
1 x RS-485 |
| Power |
| Consumption |
Idle: 25 mA @ 24 VDC; Data Link: 44 mA @ 24 VDC; Peak: 45 mA @ 24 VDC; Sleep: 15mA @ 3.7VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
91 x 132 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
5~95% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| SMS-534 CR |
3G AI/DI Alarm Controller to SMS, Voice (RoHS) (Asia Only) |
