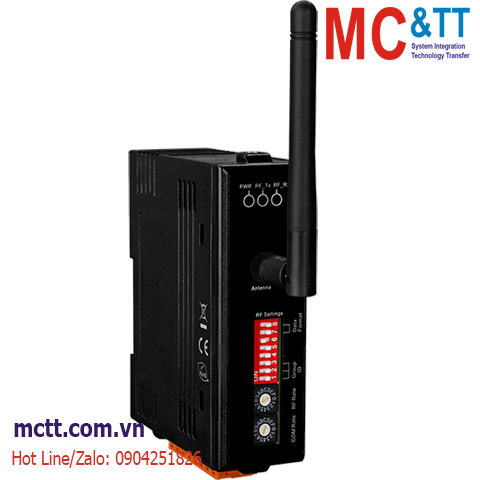

Radio Modem 433 MHz RS-232/485 ICP DAS RFU-433 CR
Feature
- 433 MHz Radio Frequency
- 16 RF Channels
- 8 RF Baud Rates
- Includes a PA switch that can be used to enhance the RF power
- Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
- Transparent transmission mode
- Provides Baud Rates from 1200 to 115200 bps for both the RS-232 and RS-485 interfaces
- ESD Protection: Contact +/-4 kV
- Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a photocoupler
- DIN-Rail Mountable
- Operating Temperatures, -25 °C ~ +75 °C
Introduction
The RFU-433 is an RS-232/485 to 433 MHz radio modem that can be used to convert data from an RS-232/485 device to an RF message that can then be transmitted in transparent mode via the 433 MHz ISM frequency band. The RFU-433 provides a maximum line of sight (LOS) transmission distance of 500 meters (0.5 km) at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-433 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful when attempting to avoid interference encountered when two RFU-433 networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different RFU-433 networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby providing a simple method of maintaining the system if the RFU-433 modem needs to be replaced.
Application
Specifications
| Isolation |
| Intra-module Isolation |
2500 Vrms for photocoupler (RS-485/RS-232 side) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
+/- 1 kV |
| ESD (IEC 61000-4-2) |
+/- 4 kV Contact |
| Surge (IEC 61000-4-5) |
+/- 1 kV |
| LED Indicators |
| Status |
1 x RF_Tx
1 x RF_Rx
1 x PWR |
| RF |
| Antenna |
0 dBi Omni directional |
| Baud Rate |
57600 bps ~ 650 bps |
| Configuration |
Rotary and DIP switch |
| Group ID |
0 ~ 7 |
| Protocol |
Transparent transmit |
| Radio Frequency |
433.1000 ~ 434.6000 MHz |
| Temporary Buffer Size |
512 Bytes |
| Transmission Power |
Default 10 dBm, Max 19 dBm |
| Transmission Distance (LoS) |
500 m (at 9600 bps RF Rate and 10 dBm Tx Power) |
| COM Ports |
| Ports |
1 x RS-232 (TxD, RxD and GND)
1 x RS-485 (D+, D- ; 3000 VDC for DC-to-DC) |
| Baud Rate |
1200 ~ 115200 |
| Data Format |
N81, E81, O81 |
| Power |
| Consumption |
1 W (Max.) |
| Mechanical |
| Casing |
Fire Retardant Materials |
| Dimensions (mm) |
108 x 84 x 33 (W x L x H)( not include antenna ) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RFU-433 CR |
433 MHz RF Wireless Modem with 1-port RS-232/485 (RoHS) |
