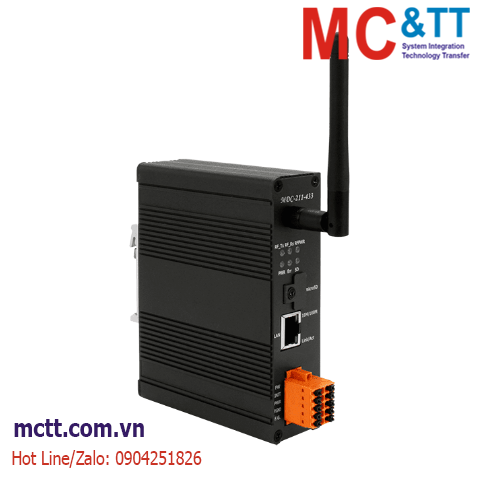

Bộ dữ liệu tập trung Radio 433 MHz Modbus 1xRS-232 + 1xRS-485 + 1xEthernet ICP DAS MDC-211-433 CR
MDC-211-433 is a Modbus data concentrator developed by ICP DAS. It has Ethernet, 433MHz wireless communication, RS-232 and RS-485 communication interfaces, and can connect Modbus RTU devices to the Ethernet network. In addition, MDC-211-433 will sequentially read the data of Modbus RTU devices according to the user-defined command list, and integrate the data of different Modbus RTU devices into a continuous address format, so that the remote monitoring host can connect to MDC-211-433 via Ethernet to access the data of multiple Modbus RTU devices at one time. Therefore, through the Modbus data centralized management function of MDC-211-433 and the convenient connection and communication capabilities of Ethernet, a stable remote monitoring system can be quickly established, allowing users to greatly simplify the difficulty of data collection, and then reduce the traffic loading of the Ethernet network to improve system performance.
Feature
- 433MHz wireless frequency band
- 16 wireless channels and 65536 group IDs
- Support Modbus RTU/TCP communication protocol
- Expand Ethernet connection capabilities for 433MHz/RS-232/RS-485 devices
- Can execute up to 250 Modbus polling commands
- Can collect and manage 9600 points of information each of DI/DO/AI/AO
- Use CSV files to edit configuration settings and support export/import functions
Application
Specifications
| RF |
| Antenna |
0 dBi Omni directional |
| Baud Rate |
650, 1200, 2400, 4800, 9600, 19200, 38400, 57600 (bps) |
| Group ID |
0 ~ 65535 |
| Radio Frequency |
433.1, 433.2, …, 434.5, 434.6 (MHz) |
| Transmission Power |
Default 10 dBm, Max 19 dBm |
| Transmission Distance (LoS) |
300 m (at 9600 bps RF Rate and 10 dBm Tx Power) |
| Ethernet |
| Ports |
x1,10/100Base-TX |
| Protocol |
Modbus/TCP Slave |
| COM Ports |
| Ports |
1 x 3-wire RS-232,
1 x 2-wire RS-485 |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 (bps) |
| Data Format |
N81, N82, O71, O81, E71, E81, S71, S81, M71, M81 |
| Protocol |
Modbus RTU Master / Slave |
| Polling Definition |
250 Modbus command definitions for all 433MHz/RS-232/RS-485 ports |
| Shared Memory |
9600 registers for each of AI, AO, DI and DO data |
| Power |
| Input Range |
+10VDC ~ +30VDC |
| Consumption |
5W@24VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 120 x 115 (W x L x H, not include antenna ) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10~90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| MDC-211-433 CR |
433MHz Modbus data concentrator with 1 x Ethernet, 1 x RS-232 and 1 x RS-485 (RoHS) (Asia Only) |
