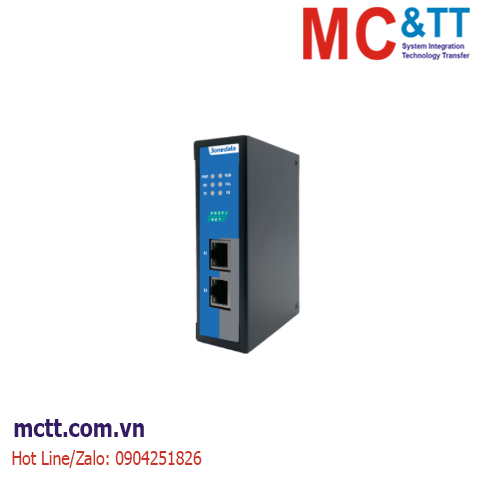

Bộ chuyển đổi giao thức EtherCAT sang Profinet 3onedata IGW3700-4T-RJ-SS-P(24VDC)
IGW3700-4T-RJ-SS-P(24VDC) is a powerful and easy to configure gateway that enables data communication between EtherCAT network and Profinet network, and can connect PROFINET network to EtherCAT network. Connect the Profinet device to the EtherCAT network. Applied to frequency converters, stepper motors, servo drives, instruments, PLCs, DCS, FCS, and more that support PROFINET interfaces.
On the Profinet side, the gateway works as a Profinet IO device, providing customers with the GSDML file for this gateway, loading the GSDML file through the TIA portal, and configuring the Profinet network. On the EtherCAT side, it serves as an EtherCAT slave, and on the PROFINET side, it serves as a PROFINET slave.
Tính năng
- Support 2 10/100Mbit/s Ethercat ports（RJ45）和2 10/100 Mbit/s Profinet ports（RJ45）
- Support EtherCAT to Profinet protocol
- Support standard PROFINET/IO protocols
- Support 24VDC DC power supply
- Support wide temperature range of -25~55 ℃
Thông số kỹ thuật
|
Profinet |
Standard：Profinet V2.3、GSDML V2.32、GSDML V2.33
Interface type：10/100 Mbit/s (RJ45)
Number of interfaces：2
Maximum data：1440bytes IN+1440bytes OUT |
|
EtherCAT |
Interface type：10/100 Mbit/s (RJ45)
Number of interfaces：2
Maximum data：512bytes IN + 512bytes OUT |
|
Indicator |
Indicator power indicator, configuration indicator, PN indicator, EthercCAT indicator |
|
Power |
24 VDC土5% |
|
Protection/Isolation |
Dual isolation: power<=>Ethernet
Protection: Reverse voltage/short circuit protection |
|
Working Environment |
Working temperature: -20~55 ℃
Storage temperature: -40~85 ℃
Relative humidity: 10%~95% (no condensation) |
|
Mechanical Structure |
Shell: IP20 protection level, metal shell
Installation: DIN 35mm rail installation
Dimensions (width x height x depth): 34mm x 110mm x 70mm |
|
Authentication |
UL、CE、FCC、RoHS |
Thông tin đặt hàng
|
Model |
100M Profinet Port |
100M EtherCAT Port |
Power Supply |
|
IGW3700-4T-RJ-SS-P(24VDC) |
2 |
2 |
24 VDC土5% |
