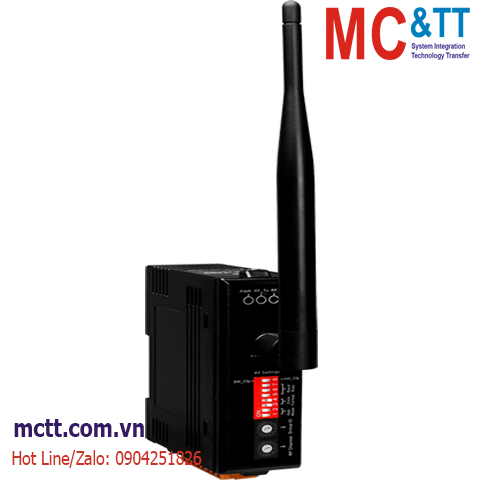

Radio Modem 2.4 GHz RS-232/485 ICP DAS RFU-2400 CR
Feature
- ISM 2.4 GHz Operating Frequency
- Direct Sequence Spread Spectrum (DSSS) RF technology
- Wireless Transmission Range up to 700 m (Default)
- RS-232/485 Interface Supported
- Half-duplex communication up to 115200 bps
- Full-duplex communication up to 57600 bps
- Fully External Switch for the Hardware Configuration
- Surge and ESD Protection
- DIN-Rail Mountable
Introduction
The RFU-2400 is a 2.4 GHz radio frequency modem that provides RS-232 and RS-485 port interfaces. It is designed to act as a wireless bridge to convert signals between serial and wireless formats, and is great for applications when the physical wire deployment is inconvenient. The RFU-2400 makes it easy to build a low-cost data acquisition and control application between a host and a range of remote sensors via wireless communication. The RFU-2400 is a spread spectrum radio frequency (RF) modem based on the IEEE 802.15.4 standard. The IEEE 802.15.4 standard is operating on the ISM bands which uses a transmission frequency range between 2405 and 2480 MHz. A total of 16 channels are available and each with a channel separation of 5 MHz. Two operating modes are also supported, including Peer-to-Peer (P2P) mode, which allows full-duplex communication, and Broadcast mode, which allows half-duplex functionality in multi-point communication.
Application
Specifications
| LED Indicators |
| Status |
1 x RF_Tx
1 x RF_Rx
1 x PWR |
| RF |
| Antenna |
2.4G - 5 dBi Omnidirectional Ante |
| Channels |
16 |
| Modulation |
OQPSK (Offset Quadrature Phase-shift Keying) |
| RX Sensitivity |
-96 dBm |
| Spread Spectrum |
DSSS (Direct-Sequence Spread Spectrum) |
| Transmission Power |
11 dBm (Default)
19 dBm (Max.) |
| Transmission Distance (LoS) |
700 m (Typical) |
| COM Ports |
| Ports |
1 x RS-232(TxD, RxD and GND)
1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated) |
| Baud Rate |
Full-duplex: 2400 to 57600 bps
Half-duplex: 2400 to 115200 bps |
| Data Format |
N81, O81, E81, N82 |
| Receive Buffer |
2560 Bytes |
| Power |
| Consumption |
1 W (Max.) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
108 x 84 x 33 (W x L x H)( not include antenna ) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RFU-2400 CR |
2.4 GHz RF Wireless Modem with 1-port RS-232/485 (RoHS) |
