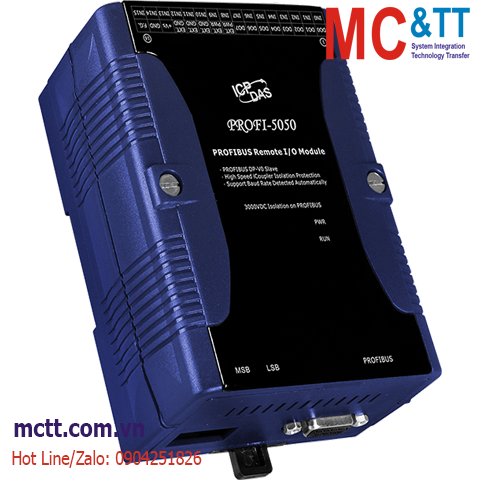

Module Profibus Slave 16 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS PROFI-5050 CR
Features
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : 0~99 set by rotary switches
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
- 4KV ESD Protection : Contact for each terminal
Introduction
The PROFI-5050 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 16-channel non-isolated digital input and 8-channel non-isolated digital output. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

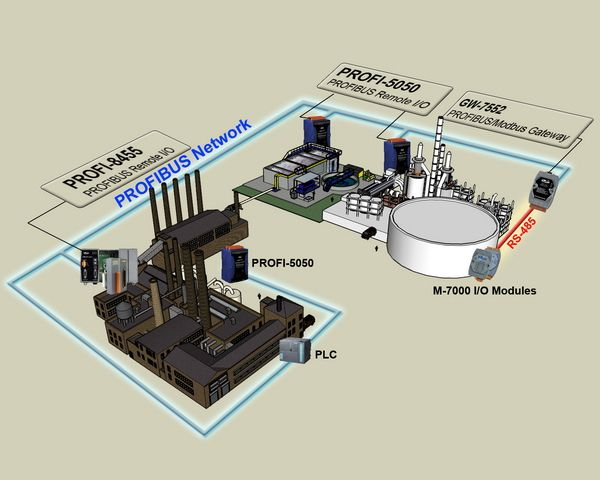

Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| LED Indicators |
| Status |
PWR LED, RUN LED |
| Digital Input |
| Channels |
16 Channels (Sink or Source), Non-Isolated with common ground(or source)
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V |
| Digital Output |
| Channels |
8 Channels (Sink), Non-Isolated with common ground
Load Voltage: +10 ~ +30V
Maximum Load Current: 30mA w/o Short-Circuit Protection |
| PROFIBUS |
| Controller |
Profichip VPCLS2 |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| Mechanical |
| Dimensions (mm) |
91 x 128 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PROFI-5050 CR |
PROFIBUS Remote I/O Module (16-channel Non-Isolated Digital Input and 8-channel Non-Isolated Digital Output) (RoHS) |
