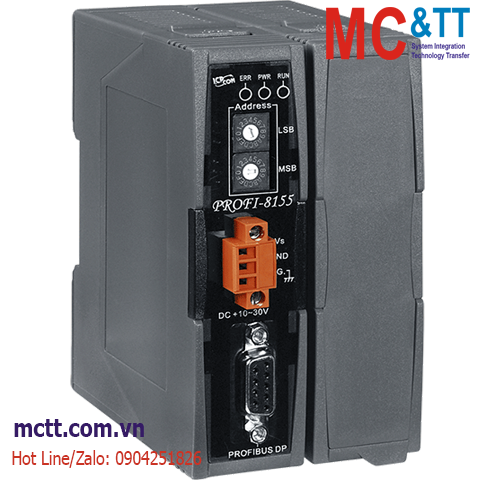

Module Profibus Slave 1 khe cắm module I/O ICP DAS PROFI-8155-G CR
Features
- Protocol & Hierarchy : DP-V0 & DP-V1 (Read/Write) Slave
- Transmission Rate Setting : detected automatically
- Address Setting : 0~126 set by Rotary switches, SSA-telegram set by DP-Master(Class 2 only)
- I/O modules Configuration : Configured by GSD file
- Supports I/O modules hot-swap : I-87K High Profile series
- Network Isolation Protection : High Speed iCoupler
- DC Isolation Protection : 3000VDC on PROFIBUS side
- 4KV ESD Protection : Contact for each terminal
Introduction
The PROFI-8155 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 1 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Watchdog IC
CPU built-in |
| LED Indicators |
| Status |
PWR LED, RUN LED, ERR LED |
| COM Ports |
| Ports |
RS-232 on board (For updating firmware)Note 1. |
| PROFIBUS |
| Controller |
Profichil VPC3+C |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0
DP-V1 |
| Mechanical |
| Dimensions (mm) |
95 x 91 x 132 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-40 ~ +80 ℃ |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PROFI-8155-G CR |
PROFIBUS Remote I/O Unit with 1 I/O Slot (RoHS) |
