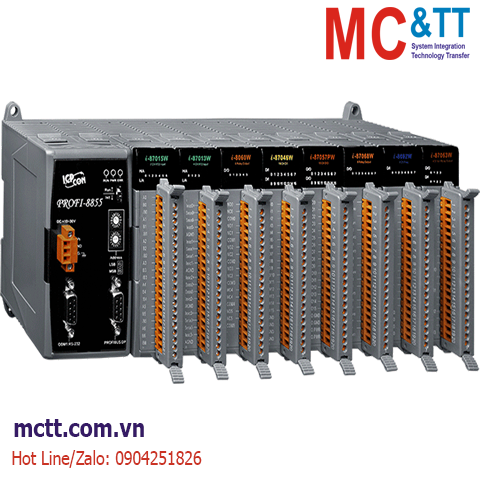

Module Profibus Slave 8 khe cắm module I/O ICP DAS PROFI-8855-G CR

Chia sẻ:
Mã sản phẩm: PROFI-8855-G
Thương hiệu: ICP DAS
Tình trạng:

PROFIBUS Remote I/O Unit with 8 I/O Slots

Liên hệ
Mô tả

Module Profibus Slave 8 khe cắm module I/O ICP DAS PROFI-8855-G CR

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : 0~126 set by Rotary switches
  • I/O modules Configuration : Configured by GSD file
  • Supports I/O modules hot-swap : I-87K High Profile series
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for eash terminal

Introduction

The PROFI-8855 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8 slots for ICPDAS I-8k High Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
LED Indicators
Status PWR LED, RUN LED, ERR LED
I/O Expansion
Slots 8
COM Ports
Ports RS-232 (For updating firmware)
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 5.5 W
Mechanical
Dimensions (mm) 312 x 91 x 132 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -40 ~ +80 ℃
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PROFI-8855-G     CR  PROFIBUS Remote I/O Unit with 8 I/O Slots (RoHS)
