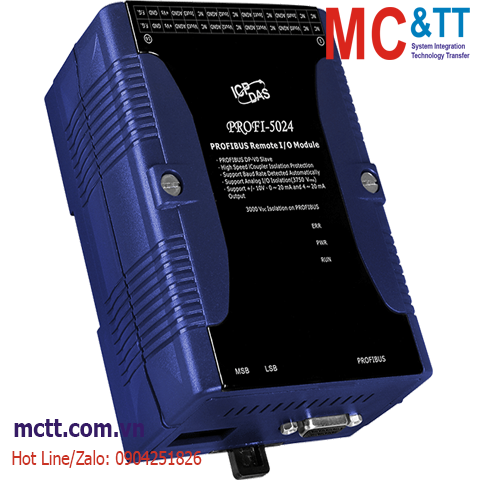

Module Profibus Slave 4 kênh đầu ra tương tự AO ICP DAS PROFI-5024 CR
Features
- • Protocol & Hierarchy : DP-V0 Slave
• Transmission Rate Setting : detected automatically
• Address Setting : Address 0~126 set by rotary switches or SSA Telegram
• I/O modules Configuration : Configured by GSD file
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000 VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal
Introduction
The PROFI-5024 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4-channel isolated analog voltage/current output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator..

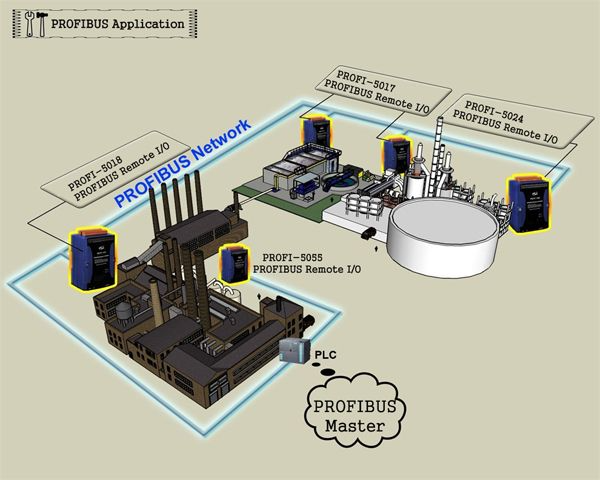

Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Watchdog IC
CPU built-in |
| LED Indicators |
| Status |
PWR LED, RUN LED, ERR LED |
| Analog Output |
| Channels |
4 Channel Voltage & Current Output, Isolation Voltage:3750Vrms |
| Range |
+/- 10V, 0 ~ 20mA, 4 ~ 20mA |
| Accuracy |
+/- 0.1% of FSR for Voltage Output ; +/- 0.2% of FSR for Current Output |
| PROFIBUS |
| Controller |
Siemens SPC3 |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 3750 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| Mechanical |
| Dimensions (mm) |
91 x 128 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PROFI-5024 CR |
PROFIBUS Remote I/O Module (4-channel Isolated Analog Voltage & Current Output) (RoHS) |
