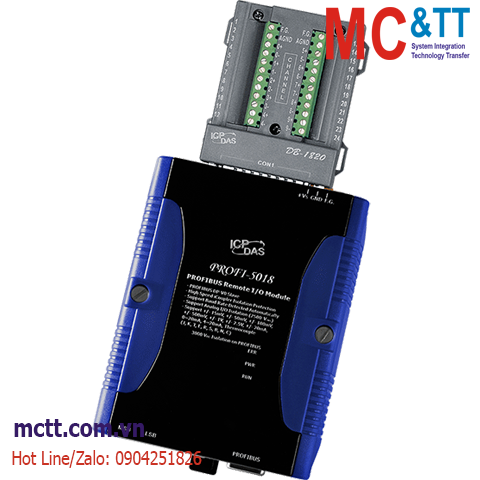

Module Profibus Slave 8 kênh đầu vào tương tự AI ( Cặp nhiệt Thermocouple) ICP DAS PROFI-5018/S CR
Features
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : Address 0~126 set by rotary switches or SSA Telegram
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : High Speed iCoupler
- 4KV ESD Protection : Contact for each terminal
Introduction
The PROFI-5018 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 10-channel Thermocouple Input Module with High Voltage Protection. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Watchdog IC
CPU built-in |
| LED Indicators |
| Status |
PWR LED, RUN LED, ERR LED |
| Analog Input |
| Channels |
10 channel differential thermocouple input, Isolation Voltage:2500Vrms |
| Range |
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, 0~20mA, 4~20mA
(requires optional external 125 Ohms resistor), Thermocouple Type: J, K, T, E, R, S, B, N, C |
| Accuracy |
+/- 0.1 of FSR |
| PROFIBUS |
| Controller |
Siemens SPC3 |
| Transceiver |
DI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| Mechanical |
| Dimensions (mm) |
91 x 130 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PROFI-5018/S CR |
PROFIBUS Remote I/O Module (10-channel Thermocouple Input with High Voltage Protection) (RoHS)
Includes a DB-1820 daughter board |
