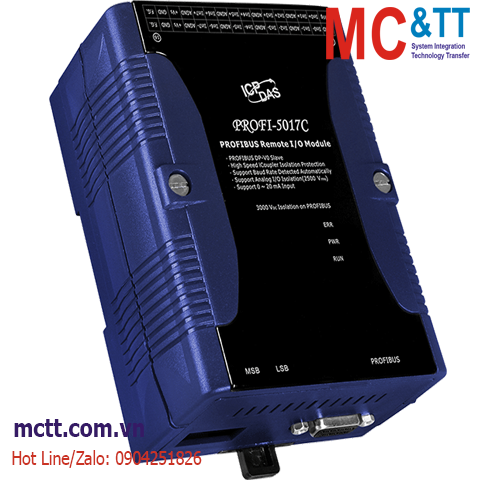

Module Profibus Slave 8 kênh đầu vào tương tự AI ICP DAS PROFI-5017C CR

Chia sẻ:
Mã sản phẩm: PROFI-5017C
Thương hiệu: ICP DAS
Tình trạng:

PROFIBUS Remote I/O Module (8-channel Isolated Analog Current Input)

Liên hệ
Mô tả

Module Profibus Slave 8 kênh đầu vào tương tự AI ICP DAS PROFI-5017C CR

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : Address 0~126 set by rotary switches or SSA Telegram
  • I/O modules Configuration : Configured by GSD file
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for each terminal

Introduction

The PROFI-5017C is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8-channel isolated analog current input with 2500Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
Analog Input
Channels 8 channel differential current input, Isolation Voltage:2500Vrms
Range 0 ~ 20mA
Accuracy +/- 0.2% of FSR
PROFIBUS
Controller Siemens SPC3
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 3 W
Mechanical
Dimensions (mm) 91 x 128 x 52 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PROFI-5017C     CR  PROFIBUS Remote I/O Module (8-channel Isolated Analog Current Input) (RoHS)
