Card PCI Dual-line Motionnet Master ICP DAS PISO-MN200 CR

Chia sẻ:
Mã sản phẩm: PISO-MN200
Thương hiệu: ICP DAS
Tình trạng:

PCI Bus, Dual-line Motionnet Master Card(For Distributed Motion & I/O Control)

Liên hệ
Mô tả

Card PCI Dual-line Motionnet Master ICP DAS PISO-MN200 CR

Features

  • Maximum Communication Speed: 20 Mbps
  • Distributed motion control up to 128 axes
  • Distributed I/O points up to 4096 points
  • Parallel I/O Ports: 8 Input and 4 Output channels
  • Optional quadrature encoder input for linear scale or manual pulse generator input
  • Software Features
  • Windows Driver/DLL/Lib: Windows 7/10 (32/64-bit), Windows XP/2000 (32-bit)
  • Programming Tools: VC/VB/BCB

Introduction

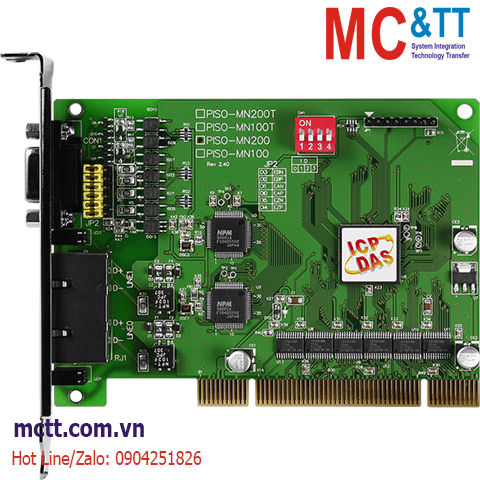

The PISO-MN200 is a PCI Master card that provides two Motionnet serial communication lines for distributed motion and I/O control in machine automation applications. The Master card can be used to connect up to 128 Slave modules (64 x 2 lines). If one of the Motionnet lines is only used for I/O control, it can send/receive signals to/from 2048 points on 64 local devices within 0.97 msec. When it is used to control motors, it can control up to 64 axes, which can be used to execute continuous positioning motion, zero return, and even multi-axis interpolation operations. In addition to serial communication, the PISO-MN200 is also equipped with parallel I/O ports (8 input channels and 4 output channels) for rapid and instinctive I/O control.

Applications

Click to view the Introduction of https://mctt.vn/motionnet-control-icp-das

Specifications

Software
OS Support Windows 7/10 32/64-bit
Windows XP/2000 32-bit
Development VC/VB/BCB
Utility EzGo Utility
Hardware
Connector HD D-Sub 15-pin x 1
LED Indicators
Status Connection (green)
Communication Error (red)
General
Interrupts Input Change of State, Communication Error
Digital Input
Channels 8
Type 12-24 V, NPN or PNP
Isolation 3000 Vrms
Input Impedance 4.7 KΩ
Digital Output
Channels 4
Type NPN or PNP
Isolation 3000 Vrms
PC Bus
Type 32-bit/33 MHz universal PCI-Bus
Motionnet
Communication Connectors RJ-45 x 2
Transfer Speed 2.5, 5, 10, 20 Mbps (Software controlled)
Length Max. 100 M (20 Mbps; 32 Slave modules)
Max. 50 M (20 Mbps; 64 Slave modules)
Max. 100 M (10 Mbps; 64 Slave modules)
Protocol Motionnet (Half-duplex RS-485)
Power
Consumption +5 V @ 500 mA
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature 20 ~ +80 °C
Humidity 5~ 85%; non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-MN200     CR  PCI Bus, Dual-line Motionnet Master Card with RJ-45 Connector(RoHS)
